Manufacturer Part #
NDL2412SC

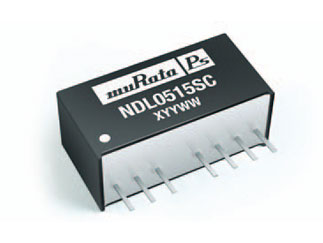

NDL Series 2 W Single Output 12 V Isolated Through Hole DC/DC Converter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Murata Power Solutions | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:23 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Murata Power Solutions NDL2412SC - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NDL2412SC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/ndl2412sc-murata-power-solutions-7010223
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NDL2412SC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/ndl2412sc-murata-power-solutions-7010223
Murata Power Solutions NDL2412SC - Technical Attributes
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Single |
| Output Power: | 2W |
| Output Voltage: | 12V |
| Input Voltage: | 24V |
| Mounting Method: | Through Hole |
Features & Applications
The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC.
The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1 kVDC. Continuous short circuit protection, external control and extremely small SIP packaging provide state of the art functionality. Nominal input voltages of 5, 12, 24 and 48 V with output voltages of 5,9,12 and 15 V are available as standard with custom parts on request. The plastic case is rated to UL94V-0 with encapsulant to UL94V-1.
Features:
- RoHS compliant
- 2:1 wide range voltage input
- Continuous short circuit protection with current foldback
- Operating temperature range -40ºC to 85ºC
- 0.75% regulation
- 1 kVDC Isolation
- Effi ciency to 83%
- Power density 0.9W/cm3
- 5V, 12V, 24V & 48V nominal input
- 5V, 9V, 12V & 15V output
- No electrolytic capacitors
- Fully encapsulated
- External control
- Low noise
- Fully encapsulated?
Available Packaging
Package Qty:
23 per Tube
Mounting Method:
Through Hole
