Manufacturer Part #

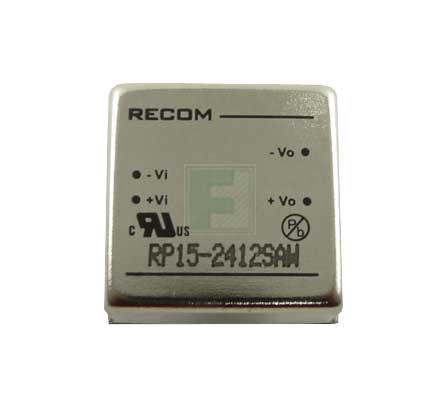

RP15-2412SAW
RP15-AW Series 15 W Single Output 12 V DC/DC Converter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:8 per Tube | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
RECOM RP15-2412SAW - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RP15-2412SAW&field4=RECOM&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/rp15-2412saw-recom-4524716
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RP15-2412SAW&field4=RECOM&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/rp15-2412saw-recom-4524716
RECOM RP15-2412SAW - Technical Attributes
Attributes Table
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Single |
| Output Power: | 15W |
| Output Voltage: | 12V |
| Input Voltage: | 9V to 36V |
| Operating Temp Range: | -40°C to +105°C |
| Efficiency: | 87% |
| Power Dissipation: | 15W |
| Load Capacitance: | 1000µF |
| Load Regulation (%): | 0.2% |
| Output Current: | 1300mA |
| Switching Frequency-Max: | 440kHz |
| Ripple & Noise: | 100mV |
| Dimension: | L 25.4mm x W 25.4mm x H 9.9mm |
Features & Applications
The RP15-2412SAW is a part of RP15-SAW series are ultraminiature wide input voltage range power DC/DC converters in a case half the size of industry standard 15 W converters. Despite their small size, the RP15-SAW converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1600 VDC isolation and low ripple/noise figures.
The outputs are also fully protected against short circuits, overcurrent and overvoltage. The RP15-SAW series will find many uses in applications where board space and/or board height is at a premium.
Features:
- Ultraminiature 25.4 x25.4x9.9 mm Package
- 15 Watts Output Power
- Single or Dual Outputs
- Wide 4:1 Input Voltage Range
- 1.6 kVDC Isolation
- Fixed Operating Frequency
- Six-Sided Continuous Shield
- Industry Standard Pinout
- Remote On/Off and Trim pins
- Efficiency to 87%
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
8+
$56.52
Product Variant Information section
Available Packaging
Package Qty:
8 per Tube
