Manufacturer Part #
6609028-6

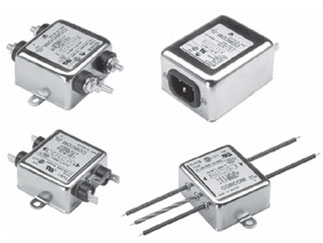

K Series 250 VAC 3 A General Purpose EMI/RFI Power Line Filter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:12 per Tray Mounting Method:Flange Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 6609028-6 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesAs part of strategic initiative , we are expanding our supply chain of the below listed Corcom filter part numbers with ADDITIONAL manufacturing location in Thailand. The production from the new plant starts tentatively in Nov-Dec 2025. The affected part numbers have no impact on form, fit and function. Effective dates can be found in the below tableReason for Changes:With the acquisition of Schaffner in Dec 2023, TE Connectivity has decided to strengthen the reliability and flexibility of the supply chain - this initiative will help us to serve our customer better with attractive lead times and seamless delivery.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=6609028-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--power-filters/6609028-6-te-connectivity-2991586
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=6609028-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--power-filters/6609028-6-te-connectivity-2991586
TE Connectivity 6609028-6 - Technical Attributes
| Application: | AC |
| Type: | EMI / RFI |
| Rated Current: | 3A |
| Mounting Method: | Flange Mount |
Features & Applications
The 6609028-6 is a part of 6609 series 3 A power filter.
Features:
- Product Type Features:
- Product Type = Filter - EMI/RFI
- Filter Type = Power Line
- Series = K (1-10 Amp)
- Termination Features:
- Terminal Input - Output Combination = Wire Lead - Wire Lead
- Electrical Characteristics:
- Current Rating (A) = 3
- Voltage ≤ (VAC) = 250
- Leakage Current (Line-to-Ground) Max. @ 250 VAC 50 Hz (mA) = 0.7
- Leakage Current (Line-to-Ground) Max. @ 120 VAC 60 Hz (mA) = 0.4
- Body Features:
- Mount Style = Flanged
- Operation/Application:
- Application = General Purpose
Available Packaging
Package Qty:
12 per Tray
Mounting Method:
Flange Mount
