Manufacturer Part #
2-1419108-5

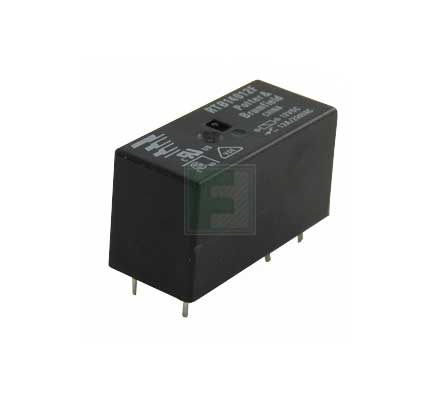

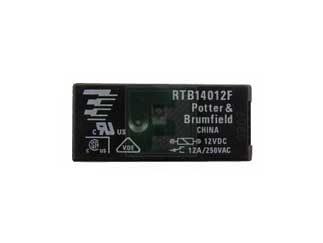

RT1 Series 12 A SPDT 12 VDC PCB Mount General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2336 | ||||||||||
TE Connectivity 2-1419108-5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesManufacturing Location Change applicable only to American customers. The following Parts Numbers will be transferred from Shenzhen, China to Waidhofen, Austria. All technical specifications remain unchanged. The new location is under a certified quality management system.Reason for Changes:Dear Customer. We would like to inform you about a transfer of production. This will be executed using a strict transfer procedure, also our European manufacturing location will be using a different epoxy material, this change is purely cosmetic and does not impact the product's performance or specifications. If you require samples for approval purpose or other support, please consult your local TE Sales representative. This change only applies for America customers.
General Product Description:RT relay seriesDescription of ChangesThe following part numbers are being modified due to release of an additional plastic material for usage at the base part of the RT relay series. This change makes it happen to use a halogen-free plastic material for reducing the halogen amount used within RT relays. Performance, SSA Approvals (except material addition) as well as specified material parameters remain unchanged. Please get in touch with your local TE sales representative in case of open questions.First Date To Ship (Changed Parts Only): 12-JUN-2023Last Date for Mixed Shipments: (Changed Parts Only): 10-MAR-2024
General Product Description:PCN for RT relaysDescription of ChangesThe following part numbers are being modified due to remove glue at the gate of relay base. This change will improve glue process. This change is just an appearance change, no function and performance influence of relay.Reason for Changes:Product improvement. Dear customer, you are receiving this notice this notice because TE Connectivity has record of you purchasing a part or multiple parts on the list below. These parts are affected by the change mentioned above.First Ship Date of Changed Items (Changed Parts Only):12-JUL-2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-1419108-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/2-1419108-5-te-connectivity-5399514
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-1419108-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/2-1419108-5-te-connectivity-5399514
TE Connectivity 2-1419108-5 - Technical Attributes
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPDT (1 Form C) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 12A |
| Coil Resistance: | 360Ω |
| Switching Voltage: | 400V |
| Contact Material: | Silver Nickel (AgNi 90/10) |
| Operating Temp Range: | -40°C to +85°C |
| Height - Max: | 15.7mm |
| Termination Style: | PC Pin |
| No of Terminals: | 5 |
| Mounting Method: | PCB Mount |
Available Packaging
Package Qty:
500 per Box
Mounting Method:
PCB Mount
