Manufacturer Part #
5-1393211-7

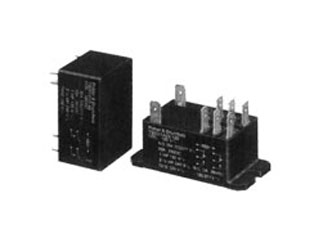

T92 Series 30 A DPST (2 Form A) 120 VAC Flange Mount General Purpose Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Bag Mounting Method:Flange Mount | ||||||||||
| Date Code: | 1820 | ||||||||||
Product Specification Section
TE Connectivity 5-1393211-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-1393211-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/5-1393211-7-te-connectivity-5771092
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-1393211-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/5-1393211-7-te-connectivity-5771092
TE Connectivity 5-1393211-7 - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | DPST (2 Form A) |
| Nominal Coil Voltage: | 120V |
| Contact Current-Max: | 30A |
| Coil Resistance: | 9550Ω |
| Switching Voltage: | 600V |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Operating Temp Range: | -55°C to +65°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 26.4mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 8 |
| Mounting Method: | Flange Mount |
Features & Applications
The 5-1393211-7 is a part of T92 Series 120 VAC 30 Ampere DPST (2 Form A) Contact Arrangement Flange Mount PCB style General Purpose Power Relay.
Product Features:
- Relay Type = Power PCB/Panel Mount Relay
- Relay Style = PCB
- T92 Series
- Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
- Contact - Rated Current = 30 A
- Mounting Options = Flange Mount
- Enclosure Type = Dust Cover
- Contact - Rated Current (A) = 30
- Input Voltage (VAC) = 110, 120
- Termination Type = .250 x .032 Quick Connect Terminals
Pricing Section
Global Stock:
6
USA:
6
On Order:
0
Factory Lead Time:
23 Weeks
Quantity
Unit Price
1
$12.80
4
$12.61
10
$12.49
25
$12.37
40+
$12.19
Product Variant Information section
Available Packaging
Package Qty:
30 per Bag
Mounting Method:
Flange Mount
