  5. 7-1393114-8

TE Connectivity | 7-1393114-8

Manufacturer Part #

7-1393114-8

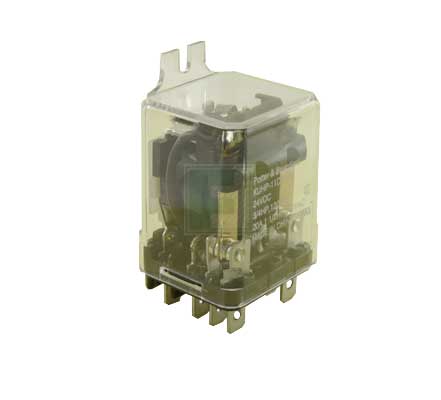

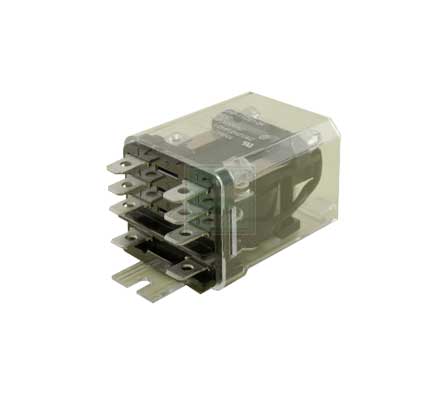

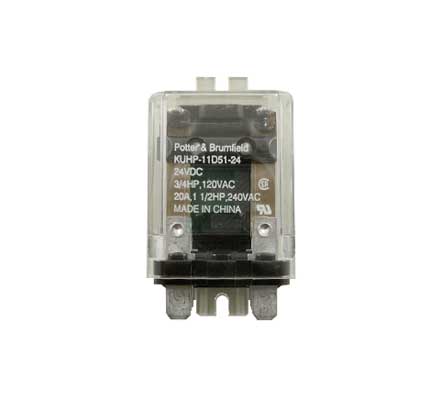

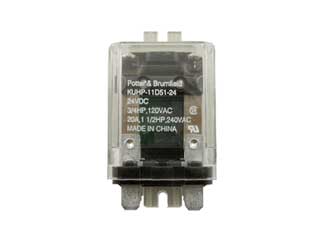

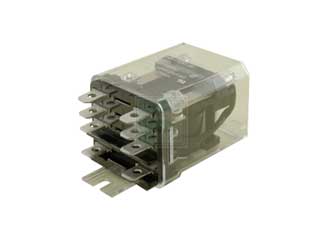

KUHP Series 20 A DPDT 24 VDC Bracket Mount General Purpose Power Relay

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 7-1393114-8 - Technical Attributes
Attributes Table
Relay Type: Power
Coil Type: Non-Latching
Contact Form: DPDT (2 Form C)
Nominal Coil Voltage: 24V
Contact Current-Max: 20A
Coil Resistance: 472Ω
Switching Voltage: 240V
Contact Material: Silver Cadmium Oxide (AgCdO)
Operating Temp Range: -45°C to +70°C
Insulation Resistance: 100MΩ
Height - Max: 35.7mm
Termination Style: Quick Connect
No of Terminals: 8
Mounting Method: Bracket Mount
Features & Applications
The 7-1393114-8 is a KUHP Series 20 A DPDT 24 VDC Bracket Mount General Purpose Power Relay.

Features:

  • AC coils 6 to 277VAC 50/60Hz, DC 6 to 110VDC
  • Contact arrangement up to 2 form C (CO)
  • .250” combination push-on/solder terminals or PC terminals
  • Side flange and top flange mounting
  • Designed to meet VDE space requirements: Class B coil insulation

Applications:

  • Commercial HVAC
  • Smart-grid communications controllers
  • Baggage handling
  • Pumps






Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
25
Multiple Of:
25
