Manufacturer Part #
APF10209

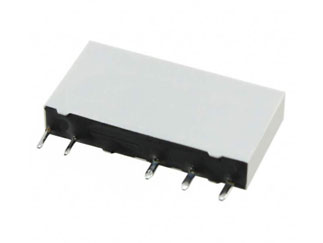

APF Series 6 A SPST 9 VDC Through Hole Non-Polarized Slim Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:60 per Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry APF10209 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=APF10209&field4=Panasonic Industry&field18=https://p1emea.futureelectronics.com/p/electromechanical--relays--power-relays/apf10209-panasonic-6193846
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=APF10209&field4=Panasonic Industry&field18=https://p1emea.futureelectronics.com/p/electromechanical--relays--power-relays/apf10209-panasonic-6193846
Panasonic Industry APF10209 - Technical Attributes
Attributes Table
| Relay Type: | Power |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Coil Current: | 18.9mA |
| Nominal Coil Voltage: | 9V |
| Contact Current-Max: | 6A |
| Coil Resistance: | 476Ω |
| Switching Voltage: | 250V |
| Rated Power: | 170mW |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| Insulation Resistance: | 1GΩ |
| Termination Style: | PC Pin |
| No of Terminals: | 4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
1
$2.28
3
$2.22
10
$2.16
20
$2.13
30+
$2.07
Product Variant Information section
Available Packaging
Package Qty:
60 per
Mounting Method:
Through Hole
