Manufacturer Part #
JVN1A-12V-F

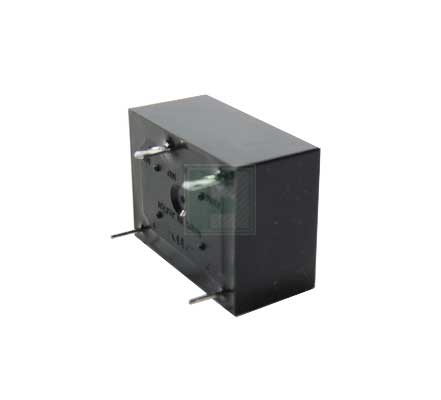

JVN Series 16 A SPST 12 VDC Through Hole Non-Polarized Compact Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Panasonic Industry JVN1A-12V-F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
12/15/2025 Details and Download
Certification Status
04/12/2024 Details and Download
We would like to inform that the safety standard certification mark will change from TUV to VDE on certain relay series.Effective Date: From November2022 production. Change Details: Due to the change of safety standard certification authority for EN61810-1, the TUV mark on certain relay series will be changed to VDE. There is no change in the acquired standard EN61810-1 itself.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=JVN1A-12V-F&field4=Panasonic Industry&field18=https://p1emea.futureelectronics.com/p/electromechanical--relays--power-relays/jvn1a-12v-f-panasonic-industry-5110141
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=JVN1A-12V-F&field4=Panasonic Industry&field18=https://p1emea.futureelectronics.com/p/electromechanical--relays--power-relays/jvn1a-12v-f-panasonic-industry-5110141
Panasonic Industry JVN1A-12V-F - Technical Attributes
Attributes Table
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Coil Current: | 16.7mA |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 16A |
| Coil Resistance: | 720Ω |
| Switching Voltage: | 110V |
| Contact Material: | Silver Tin Oxide (AgSnO2) |
| Operating Temp Range: | -40°C to +70°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 11mm |
| Termination Style: | PCB |
| No of Terminals: | 4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
5
$4.49
25
$4.40
100
$4.33
250
$4.28
1,000+
$4.16
Product Variant Information section
Available Packaging
Package Qty:
100 per
Mounting Method:
Through Hole
