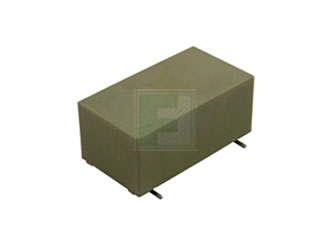

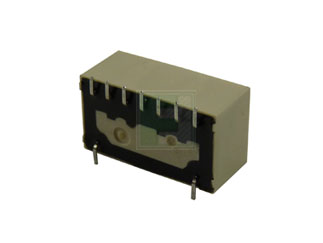

Panasonic Industry | ARE13A12

Manufacturer Part #

ARE13A12

ARE Series High Frequency 0.5 A SPDT 12 VDC Surface Mount Signal Relay

ECAD Model:
Mfr. Name: Panasonic Industry
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Panasonic Industry ARE13A12 - Technical Attributes
Attributes Table
Contact Form: SPDT (1 Form C)
Nominal Coil Voltage: 12V
Contact Current-Max: 0.5A
Termination Style: Gull Wing
Mounting Method: Surface Mount
Features & Applications

The ARE Series High Frequency 0.5 A SPDT 12 VDC Surface Mount Signal Relay

Features:

  • Excellent high frequency characteristics (to 2.6GHz)
  • High frequency characteristics (Impedance: 50 ohm, Standard PC board terminal)
  • Surface-mount type also available
  • Compact and slim size
  • Size: 20.2(L) × 11.2(W) × 8.9(H)* mm
  • Size: .795(L) × .441(W) × .350(H) inch

Applications:

  • Broadcasting and video markets.
  • Digital broadcasting market
  • STB/tuner market, etc
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Minimum Order:
25
Multiple Of:
25
Total
$92.50
USD
Quantity
Unit Price
25
$3.70
50
$3.65
75
$3.63
100
$3.61
125+
$3.55
