Manufacturer Part #

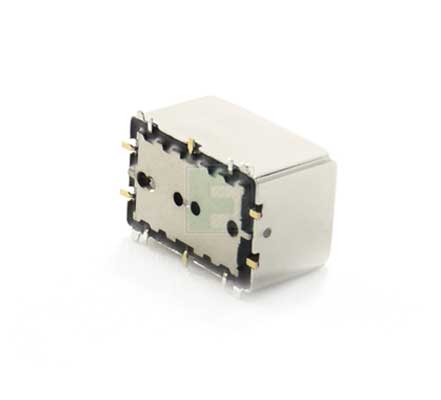

ARJ20A12Z
ARJ Series High Frequency 0.3 A DPDT 12 VDC Surface Mount Signal Relay
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:500 per Reel Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
Panasonic Industry ARJ20A12Z - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
** Notice Withdrawal of FPCN 113461**This notice formally rescinds the previously issued Product Notice that marked the following Panasonic Industry part numbers as Not Recommended for New Designs (NRFND). Effective Date: ImmediateRetraction Details: After further evaluation and consideration, we have decided to reverse the NRFND status for all the listed parts in the Notice dated 05.30.2025. This change is effective immediately. We apologize for any confusion or inconvenience the previous notice may have caused.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ARJ20A12Z&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--signal-relays/arj20a12z-panasonic-8614430
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ARJ20A12Z&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--signal-relays/arj20a12z-panasonic-8614430
Panasonic Industry ARJ20A12Z - Technical Attributes
| Contact Form: | DPDT (2 Form C) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 0.3A |
| Termination Style: | Gull Wing |
| Mounting Method: | Surface Mount |
Features & Applications
The ARJ Series High Frequency 0.3 A DPDT 12 VDC Surface Mount Signal Relay
Features:
- Excellent high frequency
- characteristics (50Ω, at 5GHz)
- V.S.W.R.: Max. 1.25
- Insertion loss: Max. 0.5dB
- Isolation: Min. 35dB
- Surface mount terminal
- Small size
- Measuring equipment market
- Network communications market
- Medical instrument market
Applications:
- Measuring equipment market
- Network communications market
Available Packaging
Package Qty:
500 per Reel
Mounting Method:
Surface Mount
