Manufacturer Part #

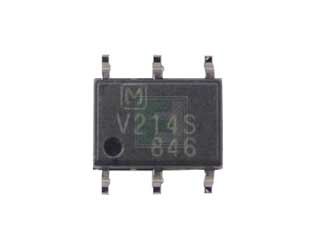

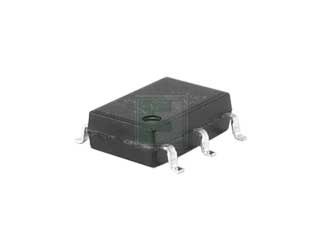

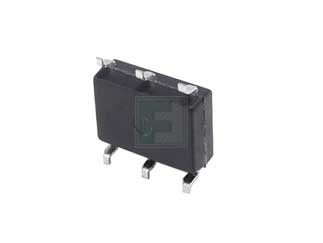

AQV214S
AQV Photomos Series 0.1 A 400 V 50 Ohm SMT 1 Channel Solid State Relay -SOIC-6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:75 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2507 | ||||||||||
Product Specification Section
Panasonic Industry AQV214S - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
10/14/2025 Details and Download
Certification Status
10/15/2024 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AQV214S&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/aqv214s-panasonic-industry-5823562
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AQV214S&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/aqv214s-panasonic-industry-5823562
Panasonic Industry AQV214S - Technical Attributes
Attributes Table
| Contact Form: | SPST (1 Form A) |
| No of Channels: | 3 |
| Output Voltage: | 0V to 400V |
| On-state Resistance-Max: | 50Ω |
| Input Voltage: | 1.5V |
| Input Current: | 5mA |
| Contact Current-Max: | 100mA |
| Isolation Voltage-RMS: | 1500V |
| Capacitance: | 1.5pF |
| Turn-on Delay Time: | 0.25ms |
| Turn-off Delay Time: | 0.05ms |
| Operating Temp Range: | -40°C to +85°C |
| Mounting Method: | Through Hole |
Features & Applications
The AQV214S is a part of AQV21 series through hole terminal AC/DC dual use type solid state relay. It has a storage temperature ranging from -40°C to +100°C and its available in SOP-6 package.
Features:
- Controls low-level analog signals
- Controls various types of loads such as relays, motors, lamps and solenoids
- Optical coupling for extremely high isolation
- Eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side
- Stable on-resistance
- Low-level off state leakage current of max. 1 µA
- Reinforced insulation type of I/O voltage 5,000V also available
- Load current: 120 mA
- Load voltage: 400 V
Applications:
- High-speed inspection machines
- Telephone equipment
- Data communication equipment
- Computers??
Pricing Section
Global Stock:
500
USA:
500
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
20
$1.06
40
$1.04
100
$1.02
250
$0.99
500+
$0.95
Product Variant Information section
Available Packaging
Package Qty:
75 per Tube
Mounting Method:
Through Hole
