Manufacturer Part #
CPC1945Y

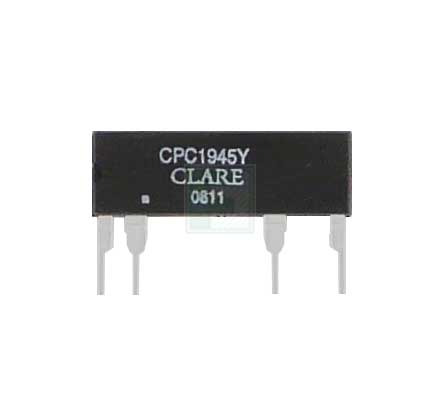

CPC1945Y Series SPST 1 A 400 V Single Channel Solid State Relay - SIP-8
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:25 per Tube Package Style:SIP-4 Mounting Method:Through Hole |
||||||||||
| Date Code: | 2439 | ||||||||||
Littelfuse CPC1945Y - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Detailed Description of ChangeLittelfuse IXYS Integrated Circuits Division (ICD) would like to inform you of an important compliance update within our ICD Solid State Relay (SSR) portfolio: selected ICD SSR products have successfully obtained T?V certification, further strengthening our commitment to product quality, safety, and regulatory requirements.Effective date: T?V certification has already been granted. All related online datasheets are planned for update and publication by calendar Week 12
Description:Following the PCN EIC-1138, dated July 31st, 2024- Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about additional pat numbers affected by this change.As a result, we need to remove the UL 94 V-0 flammability rating from the datasheets for the part numbers.Littelfuse would like to inform you that although components shipped from Littelfuse are considered to not have a UL 94 V-0 flammability rating, they remain fully compliant with the certifications outlined in their respective data sheets.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CPC1945Y&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/cpc1945y-littelfuse-1449933
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CPC1945Y&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/cpc1945y-littelfuse-1449933
Littelfuse CPC1945Y - Technical Attributes
| Contact Form: | SPST (1 Form A) |
| No of Channels: | 1 |
| Output Voltage: | 400V |
| Input Voltage: | 0.9V to 1.5V |
| Input Current: | 100mA |
| Contact Current-Max: | 1A |
| Isolation Voltage-RMS: | 3750V |
| Capacitance: | 3pF |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SIP-4 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
25 per Tube
Package Style:
SIP-4
Mounting Method:
Through Hole
