Manufacturer Part #
1825140-1

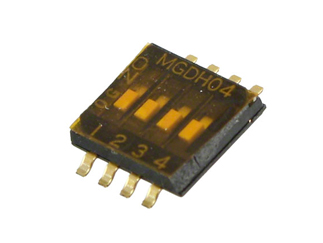

MDH Series 4 Position 1.27 mm Pitch SPST Surface Mount Slide Dip Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:35000 per Tube Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 1825140-1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
General Description of Changes:As of February 2025, the location of manufacturing for p/ns listed in this PCN will be moved from one location to another facility within Shenzhen China. There is no Form Fit or Function change to any of the products involved, the process and manufacturing team remains unchanged.Reason for Changes:Manufacturing location change
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825140-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825140-1-te-connectivity-1054610
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1825140-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/1825140-1-te-connectivity-1054610
TE Connectivity 1825140-1 - Technical Attributes
| Type: | Dip |
| No of Positions: | 4 |
| Circuitry: | SPST |
| Actuator Style: | Slide |
| Termination Style: | Solder |
| Sealed Option: | Sealed |
| Voltage Rating: | 50V |
| Current Rating: | 1A |
| Terminal Pitch: | 1.27mm |
| Operating Temp Range: | -30°C to +85°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
35000 per Tube
Mounting Method:
Surface Mount
