Manufacturer Part #
90HBJ03PT

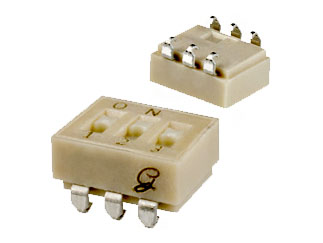

90HB Series Low Profile SPST 3 Position Surface Mount DIP Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Grayhill | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:47 per Tube Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
Grayhill 90HBJ03PT - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.50.90.65
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=90HBJ03PT&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/90hbj03pt-grayhill-8438202
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=90HBJ03PT&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/90hbj03pt-grayhill-8438202
Grayhill 90HBJ03PT - Technical Attributes
Attributes Table
| Type: | Dip |
| No of Positions: | 3 |
| Circuitry: | SPST |
| Actuator Style: | Standard |
| Termination Style: | PCB |
| Sealed Option: | Sealed |
| Contact Resistance: | 20mΩ |
| Voltage Rating: | 24V |
| Current Rating: | 25mA |
| Insulation Resistance: | 5000MΩ |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -40°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
47
$3.01
94
$2.98
141
$2.96
188
$2.95
235+
$2.90
Product Variant Information section
Available Packaging
Package Qty:
47 per Tube
Mounting Method:
Through Hole
