Manufacturer Part #
GB15AH

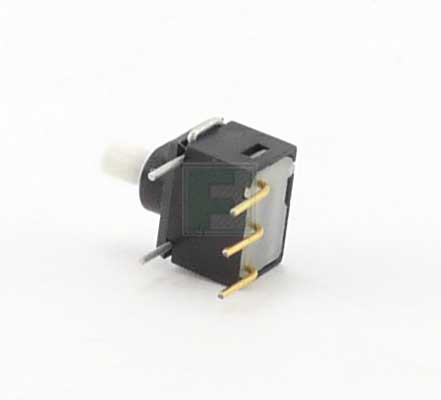

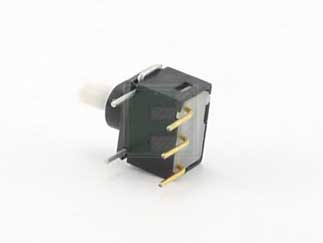

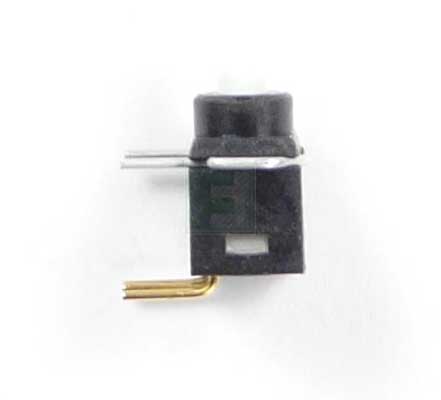

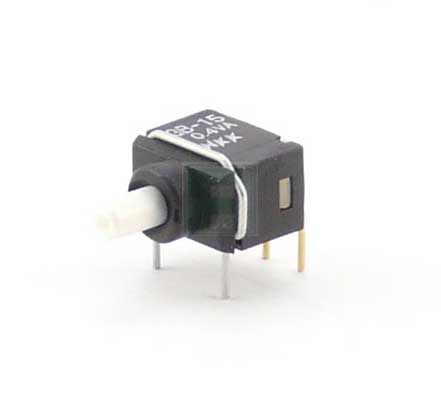

GB Series SPDT Process Sealed Ultra-Miniature Pushbutton Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
NKK Switches GB15AH - Product Specification
Shipping Information:
ECCN:
PCN Information:
There will be revisions to the production and manufacture location for GB Pushbuttons and GW Rockers and Paddles, both illuminated and nonilluminated in each series. Previously, the lot code on the switch body had a dot mark above the first digit, but now the dot mark will be above the second digit. The shipping box for these pushbuttons, rockers or paddles had "CHINA FACTORY" on the side, but will be replaced with "PHILIPPINES FACTORY." These changes will apply to standard and custom GB Pushbuttons and GW Rockers.
Part Status:
NKK Switches GB15AH - Technical Attributes
| Switch Operation: | On-Mom |
| Circuitry: | SPDT |
| Illumination Color: | No |
| Actuator Style: | Plunger |
| Termination Style: | Right Angle |
| Mounting Method: | Through Hole |
Features & Applications
Available Packaging
Package Qty:
100 per Tray
Mounting Method:
Through Hole
