Manufacturer Part #

GB25AP-XC

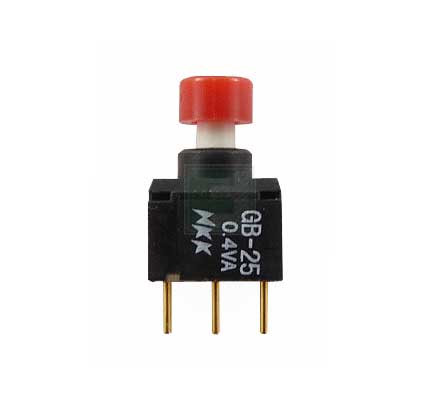

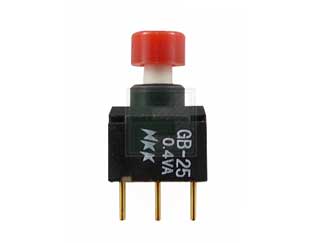

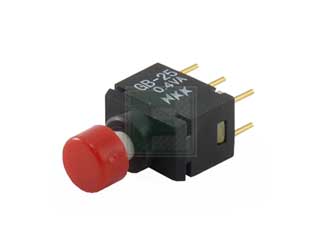

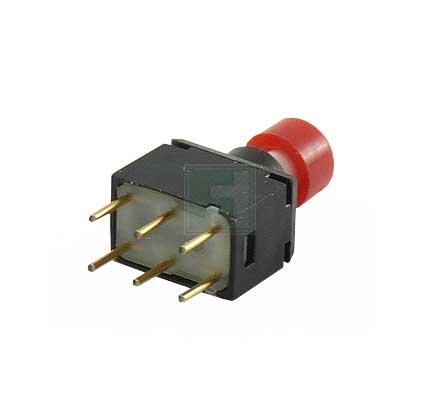

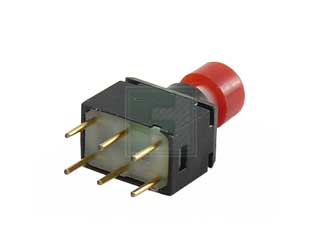

GB Series Ultra Mini DPDT On-Momentary Straight Through Hole Pushbutton Switch

GB25AP-XC Datasheet GB25AP-XC Documentation 3D Drawings
ECAD Model: Download the CAD models for this product. Learn more about SnapMagic.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Bulk BulkSelected Variant Qty: 100+ / Unit Price: $6.12 / Stock: 0 Qty: 4+$6.12 Stock: 0 Package Qty: 1 per Bulk Mounting Method: Through Hole
Date Code:

NKK Switches GB25AP-XC - Technical Attributes

Switch Operation:	On-Mom
Circuitry:	DPDT
Actuator Style:	Round Button
Termination Style:	Straight PC
Mounting Method:	Through Hole

Features & Applications

The GB25AP-XC is a GB Series Ultra Mini DPDT On-Momentary Straight Through Hole Push Button Switch.

These switches are Ultra-miniature size allows high density mounting, and extremely light weight of 0.25 gram makes these switches ideal for handheld equipment. Totally sealed body construction prevents contact contamination and allows time- and money-saving automated soldering and cleaning.

Features:

These switches are designed for use in a low-voltage, low-current, logic-level circuit
When used as intended in a logic-level circuit, the results do not produce hazardous energy
Logic Level: 0.4 VA maximum @ 28 V AC/DC maximum
Operating Temp Range: –30°C through +85°C (–22°F through +185°F)
