Manufacturer Part #
42D36-01-2-AJN

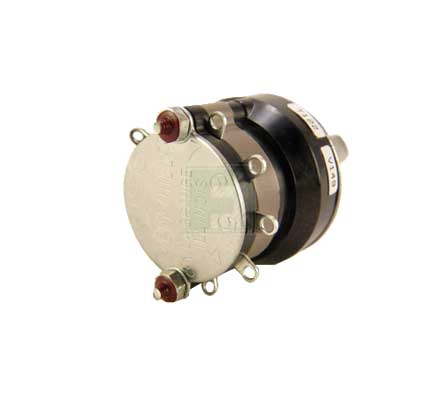

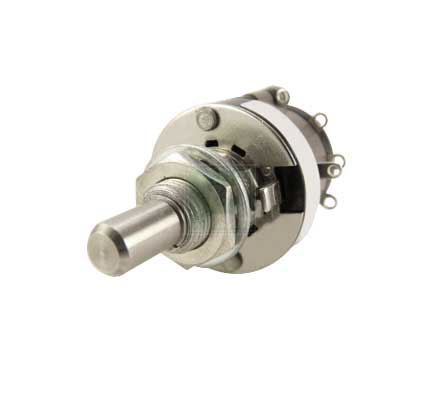

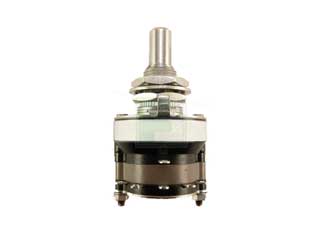

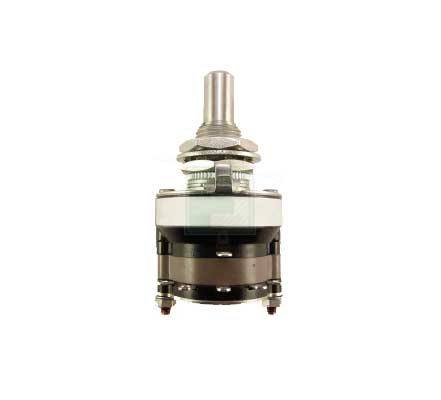

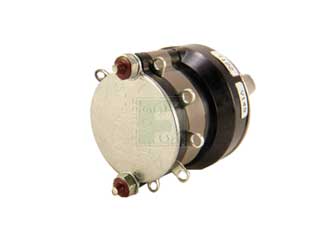

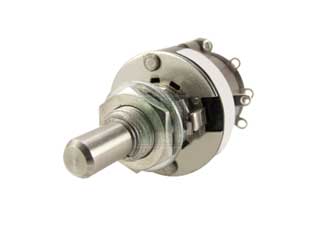

42 Series 1 Deck 2 Pole 5 Pos 1 A Flatted Actuator Military SR04 Rotary Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Grayhill | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Grayhill 42D36-01-2-AJN - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Material Change
02/12/2015 Details and Download
Plating material change on rotary and push button switchesDescription of Change: Grayhill is changing the Tin/Zinc plating to Sulfamate Nickel plating on all standard rotary and push button switches.Reason for Change: This change improves the control of process variation of the plating process by limiting the elements involved and improving the overall appearance of the products.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=42D36-01-2-AJN&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--rotary/42d36-01-2-ajn-grayhill-9638933
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=42D36-01-2-AJN&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--rotary/42d36-01-2-ajn-grayhill-9638933
Grayhill 42D36-01-2-AJN - Technical Attributes
Attributes Table
| Indexing: | 36° |
| Circuitry: | DP |
| No of Positions: | 5 |
| Contact Style: | Non-Shorting |
| Termination Style: | PCB |
| Contact Material: | Brass Over Gold |
| Mounting Method: | PCB Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1
$51.31
3
$50.46
4
$50.24
10
$49.55
15+
$48.87
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
Mounting Method:
PCB Mount
