Manufacturer Part #
1201M2S3AV2BE2

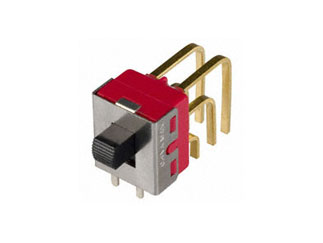

1000 Series Mini DPDT On-None-On Right Angle Through Hole Slide Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2400 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | 2436 | ||||||||||
C&K 1201M2S3AV2BE2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1201M2S3AV2BE2&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/1201m2s3av2be2-c&k-9268764
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1201M2S3AV2BE2&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/1201m2s3av2be2-c&k-9268764
C&K 1201M2S3AV2BE2 - Technical Attributes
| Actuator Style: | Standard |
| Switch Operation: | On-None-On |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 20VAC |
| Voltage Rating: | 20V |
| Contact Current-Max: | 6A |
| Insulation Resistance: | 1000MΩ |
| Contact Resistance: | 10mΩ |
| Contact Material: | Gold |
| Contact Plating: | Gold |
| Termination Style: | Vertical / Right Angle |
| Dielectric Withstanding Voltage: | 1000V |
| Operating Temperature: | -30°C to +65°C |
| Mounting Method: | Through Hole |
Features & Applications
The 1000 series from C&K is a perfect slide switch solution for test and measurement equipment, telecommunications and computer and peripherals applications.
With more than 50 years experience, C&K is synonymous with quality and reliability, two qualities that come as standard with the 1000 Series of slide switches.
All models of the 1000 series have epoxy terminal seal and are compatible with the bottom wash PCB cleaning methods. The 1000 series offers Single Pole Double Throw (SPDT) and Double Pole Double Throw (DPDT) operation solutions with multiple mounting and termination options. With a variety of actuator sizes and colors the 1000 series can be customized to your application.
The 1201M2S3AV2BE2 offers a Double Pole Double Throw (DPDT) switch operation providing an On-None-On function with a black 0.20 inch high actuator. Termination is vertical right angle PC through hole with gold contact material.Available Packaging
Package Qty:
2400 per Tray
Mounting Method:
Through Hole
