Manufacturer Part #
TS01AQE

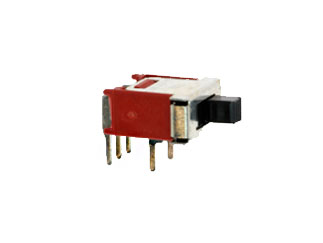

TS Series SPDT On-On 28 VDC/120 VAC Right Angle Through Hole Slide Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K TS01AQE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TS01AQE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/ts01aqe-c&k-4797098
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TS01AQE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/ts01aqe-c&k-4797098
C&K TS01AQE - Technical Attributes
Attributes Table
| Actuator Style: | Standard |
| Switch Operation: | On-None-On |
| Circuitry: | SPDT |
| Rated Voltage (VAC): | 120VAC |
| Voltage Rating: | 28V |
| Contact Current-Max: | 3A |
| Insulation Resistance: | 1000MΩ |
| Contact Resistance: | 20mΩ |
| Contact Material: | Silver |
| Contact Plating: | Silver |
| Termination Style: | Right Angle / PC Through Hole |
| Dielectric Withstanding Voltage: | 1000V |
| Operating Temperature: | -30°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$5.17
5
$5.09
20
$4.97
50
$4.89
125+
$4.76
Product Variant Information section
Available Packaging
Package Qty:
100 per Bag
Mounting Method:
Through Hole
