Manufacturer Part #
WT12T

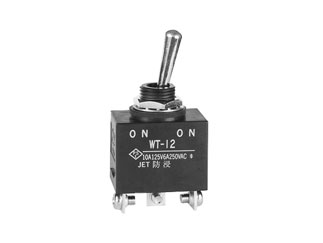

WT Series SPDT On-On Panel Mount Environmentally Sealed Toggle
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box Mounting Method:Panel Mount |
||||||||||
| Date Code: | |||||||||||
NKK Switches WT12T - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Changes for Case Material of WT Toggles, WR Rockers & WB PushbuttonsThere will be a revision to the material used for the switch cases for WT Toggles and WB Pushbuttons. WR Rockers are also included, with the exception of UL/CUL recognized rockers. The inner case material was previously melamine resin, and will be revised to melamine phenol resin. This change will apply to all standard and custom switches for each series.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=WT12T&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/wt12t-nkk-switches-6037315
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=WT12T&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/wt12t-nkk-switches-6037315
NKK Switches WT12T - Technical Attributes
| Switch Operation: | On-On |
| Circuitry: | SPDT |
| Rated Voltage (VAC): | 125VAC |
| Voltage Rating: | 30V |
| Current Rating: | 10A |
| Insulation Resistance: | 200MΩ |
| Contact Material: | Silver Over Copper |
| Actuator Type: | Round |
| Termination Style: | Screw |
| Dielectric Withstanding Voltage: | 1500V |
| Bushing Style: | Threaded |
| Operating Temperature: | -30°C to +70°C |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
1 per Box
Mounting Method:
Panel Mount
