5100145-1

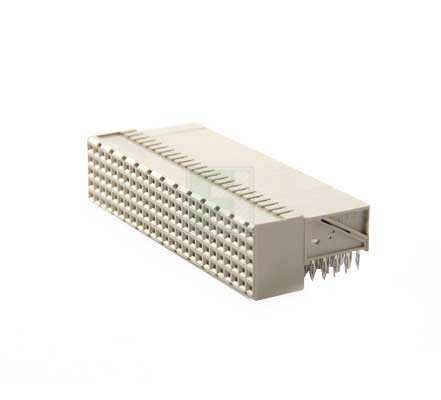

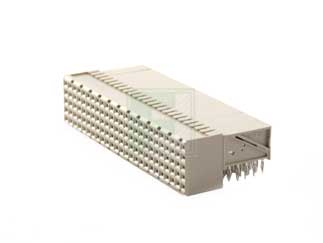

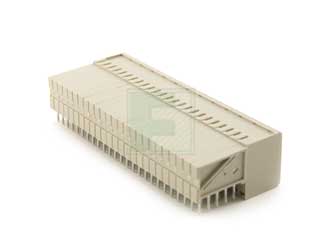

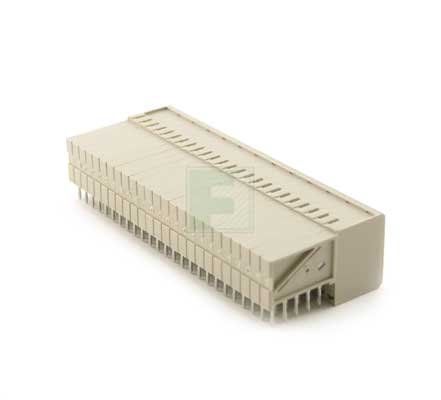

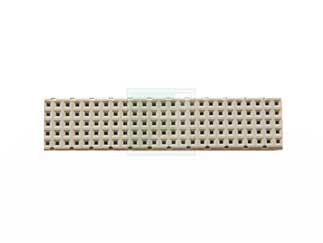

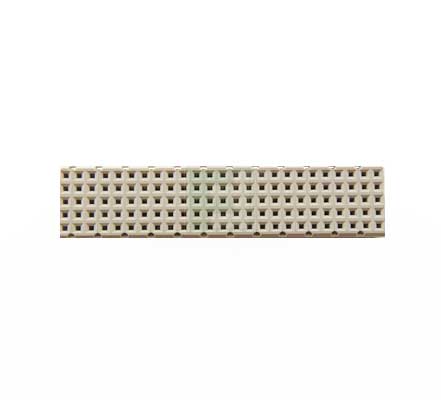

Type B 125 Position 2 mm Receptacle Right Angle Hard Metric PCB Mount Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:165 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5100145-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5100145-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5100145-1-te-connectivity-4291936
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5100145-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5100145-1-te-connectivity-4291936
TE Connectivity 5100145-1 - Technical Attributes
| Type: | Board to Board |
| Style/Orientation: | Right Angle Socket/Receptacle |
| No of Positions: | 125 |
| Pitch: | 2 mm |
| Termination: | Solder |
| Mounting Method: | Through Hole |
Features & Applications
Types A, B and C female connectors will mate with respective vertical and right angle male connectors and with shrouds shown on pages 10 and 29. Type A has 110 contacts with center guiding and keying facility, type B has 125 contacts and type C has 55 contacts with end guiding feature.
All are end stackable without change of contact pitch according to the chart on page 9. Four levels of performance are offered; standard, reduced crosstalk, ground return shield and reduced crosstalk + ground return shields. Upper ground return shields are pre-fitted to receptacles; lower shields are supplied and fitted separately as required. 5+2 male connectors are used with ground return shield versions.
Features:
- Connector
- Connector Assembly
- Connector Style = Receptacle
- Type = Type B, 25 Column
- Interface Type = 2 mm HM
Available Packaging
Package Qty:
165 per Tube
Mounting Method:
Through Hole
