Manufacturer Part #
5100161-1

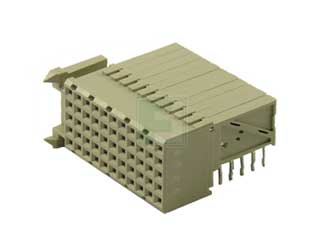

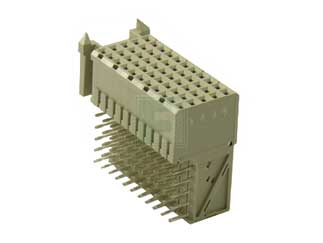

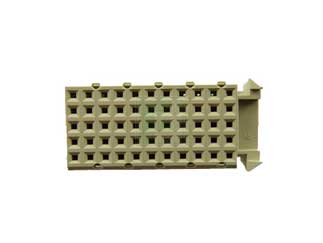

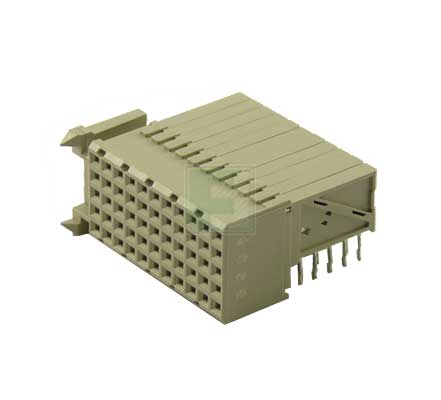

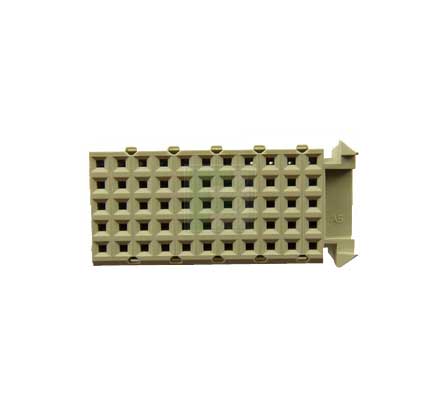

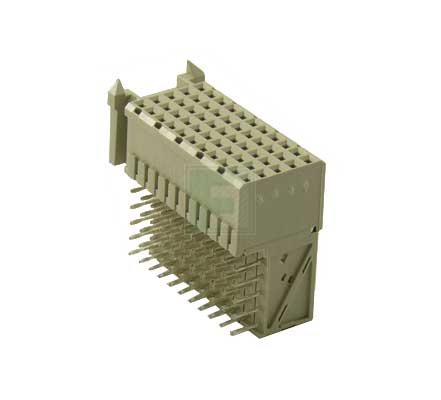

Type C 55 Position 2 mm Receptacle Right Angle Hard Metric PCB Mount Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:22 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2448 | ||||||||||
TE Connectivity 5100161-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE s operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5100161-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5100161-1-te-connectivity-6509699
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5100161-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--backplane-connectors--backpanel-connectors/5100161-1-te-connectivity-6509699
TE Connectivity 5100161-1 - Technical Attributes
| Type: | Board to Board |
| Style/Orientation: | Right Angle Socket/Receptacle |
| No of Positions: | 55 |
| No of Rows: | 5 |
| Pitch: | 2 mm |
| Termination: | Solder |
| Material: | PBT |
| Contact Plating: | Gold |
| Current Rating: | 1.5A |
| Operating Temp Range: | -55°C to +125°C |
| Voltage Rating: | 500V |
| Color: | Grey |
| Mounting Method: | Through Hole |
Features & Applications
The 5100161-1 is a 55 position right angle hard metric PCB mount receptacle connector.
Features:
- Product Type = Connector
- Connector Type = Connector Assembly
- PCB Mounting Orientation = Right Angle
- Interface Type = 2mm HM
- Termination End Plating = Tin over Nickel
- Connector Style = Receptacle
- Contact Style = Short Tail
- Contact Base Material = Phosphor Bronze
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
22 per Tube
Mounting Method:
Through Hole
