TE Connectivity | 2-747579-7

Manufacturer Part #

2-747579-7

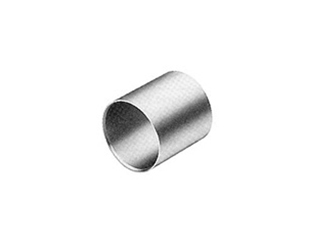

HD-20/HDE-20 Series Shell Size 1/2/3 Straight Metal Ferrule Accessory

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

The 2-747579-7 is a HD20/HDE20/HDP20/HDP22 Series 9/15/25 Position Straight Metal Shell Ferrule.

Features:

  • Product Type = Accessory
  • Accessory Type = Ferrule
  • Product Series = HD-20 (Solder Cup), HDE-20 (IDC), HDP-20 (Crimp Snap), HDP-22 (Crimp Snap)
  • Shell Size = 1, 2, 3
  • Shell Type = Full Metal Shell
  • Grade = Standard
  • Ferrule Shape = Straight
  • Cable Insulation Diameter (mm [in]) = 9.53 – 11.05 [0.375 – 0.437]
  • Ferrule Material = Steel (annealed)
  • Ferrule Plating = Bright Tin
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
4000
Multiple Of:
4000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$6,560.00
USD
Quantity
Unit Price
4,000+
$1.64
Product Variant Information section
