TE Connectivity | 2-747580-3

Manufacturer Part #

2-747580-3

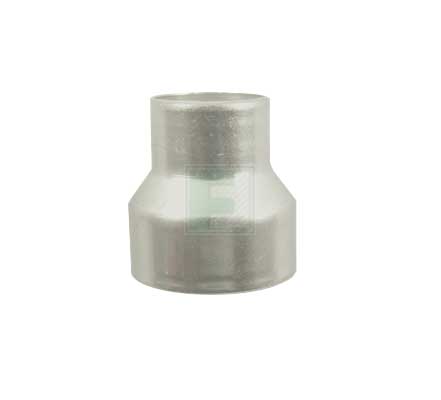

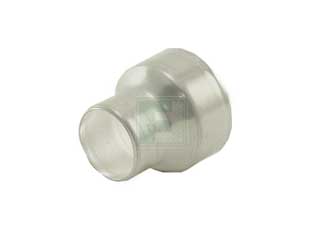

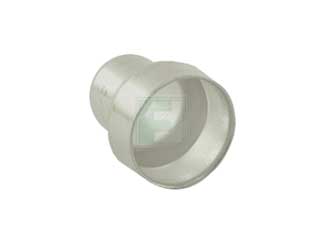

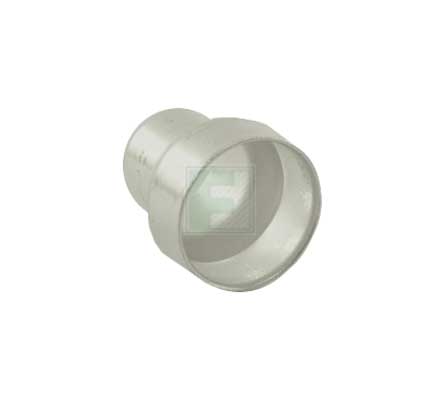

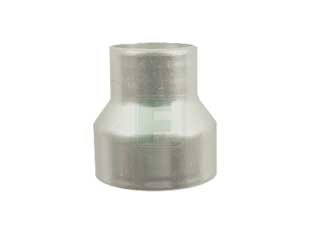

Full Metal Shell Ferrule Shell Size 4,5 Accessory

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 2-747580-3 - Technical Attributes
Attributes Table
No of Positions: 1
Mounting Method: Through Hole
Features & Applications

The 2-747580-3 is a AMPLIMITE HD-20 Subminiature D Stacked PCB Connectors are members of the complete line of AMPLIMITE Subminiature D Connector family which has been accepted by the electronic industry for their rugged design and ease of application.

Features:

  • Accessory
  • Accessory Type = Ferrule
  • Product Series = HD-20 (Solder Cup), HDE-20 (IDC), HDP-20 (Crimp Snap), HDP-22 (Crimp Snap)
  • Ferrule Shape = Stepped
  • Shell Size = 4, 5

View the Complete family of 2-7475 Interconnects

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
2 Weeks
Minimum Order:
2000
Multiple Of:
2000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,860.00
USD
Quantity
Unit Price
2,000+
$0.93
