Manufacturer Part #
5207908-7

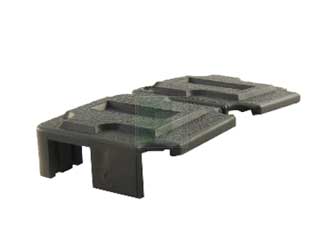

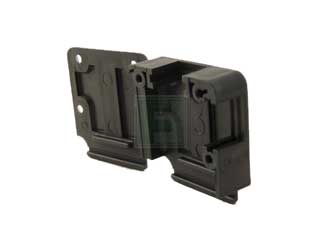

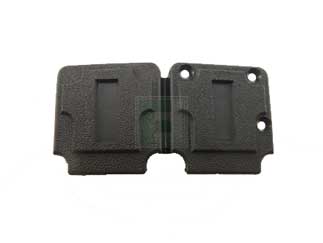

AMPLIMITE Shell Size 3 Thermoplastic Straight180°/90°Exit Backshell Clable Clamp
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Bag | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5207908-7 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5207908-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/5207908-7-te-connectivity-3350774
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5207908-7&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/5207908-7-te-connectivity-3350774
TE Connectivity 5207908-7 - Technical Attributes
| Type: | Accessory |
| Accessory Type: | Backshell |
| No of Positions: | 25 |
| Color: | Black |
| Material: | Stainless Steel |
Features & Applications
The 5207908-7 is a HD-20 Series Shell Size 3 Backshell Box and Lid Cable Clamp Kit.
The Box and Lid Cable Clamps can be used on either plugs or receptacles and will not interfere with commonly used hardware. Their hinged construction allows easy assembly to a harness. A wide range of cable diameters are accommodated through the use of cable support gates, supplied with each cable clamp. Cable clamps are available in kits with appropriate hardware for convenient plug/receptacle mating. See below for kits with Male Screw Retainers.
Features:
- Product Type = Backshell/Cable Clamp
- Cable Clamp Type = Box and Lid
- Shell Size = 3
- Screws and Retainer Clips = With
- Grommets = Without
- Thread Size = 4-40
- Product Series = HD-20 (Solder Cup)
- Retainer Clip Material = Stainless Steel
- Cable Exit Angle = Straight(180°)/90°
- Cable Insulation Diameter (mm [in]) = 9.91 [0.390]
- Cable Clamp Material = Thermoplastic
- Shield Plating = None
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
200 per Bag
