Manufacturer Part #
1546413-3

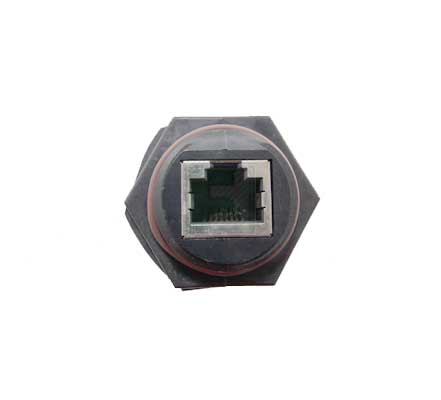

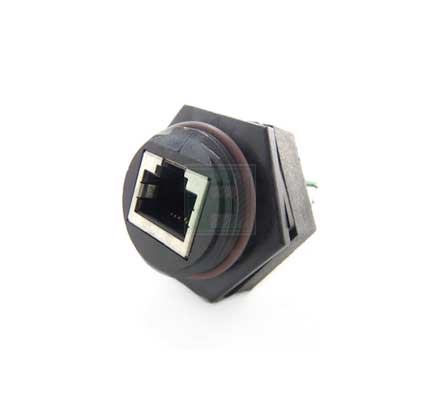

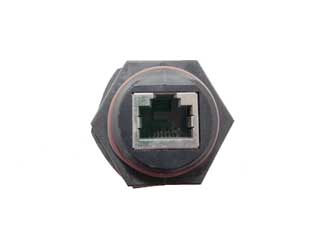

Circular Sealed RJ-45 Panel Mount Pass Through Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | 2503 | ||||||||||
Product Specification Section
TE Connectivity 1546413-3 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1546413-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/1546413-3-te-connectivity-3515327
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1546413-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/1546413-3-te-connectivity-3515327
TE Connectivity 1546413-3 - Technical Attributes
Attributes Table
| Style/Orientation: | Panel Mount Receptacle |
| IP Rating: | IP67 |
| Material: | Plastic |
Features & Applications

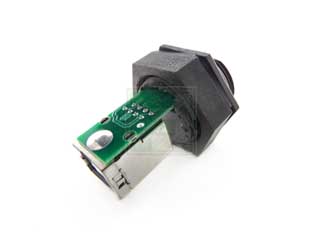

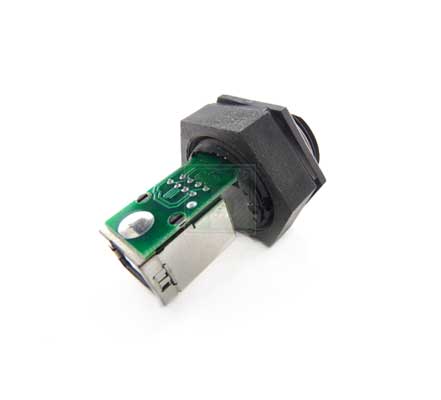

The Circular Sealed RJ-45 Connector RJ-45 Field Installable Plugs is a perfect solution to bring Ethernet into a cabinet or control box. Simply mount the bulkhead product in a panel cutout, mate a sealed connector on the outside ofthe enclosure, and run a commercial patch cord from the back-side RJ-45 Jack to yourPLC, I/O, or Ethernet Control Board.
RJ-45 Jack Specifications:
- Base Material: Copper alloy w/30 μ-inches gold alloy
- Underplating: 2.54 microns of nickel
- Mating Cycles: 250 min.
- Current Rating: 1.5 Amp
- Voltage Rating: 125 V DC
Performance Characteristics:
- Operating Temperature: -4° to 176°F [-20° to 80°C]
- Return Loss: 5 dB @ 100 MHz
- Shock/Vibration: Per IEC 60068-2-6
- Environmental Rating: IEC IP67
- TIA/EIA Rating:
- Bulkhead Pass-Through are Category
- 5e compliant; Direct PCB Mount is
- Category 5 compliant
- Mating Thread: UNC 1"–14
