Manufacturer Part #
5750071-1

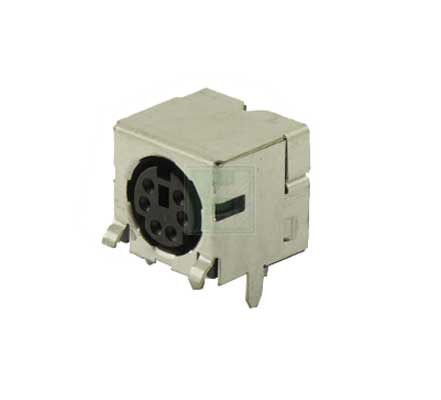

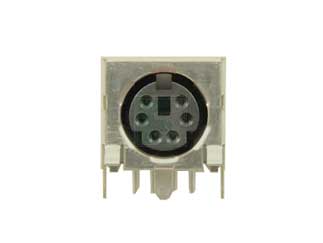

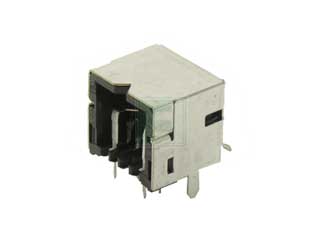

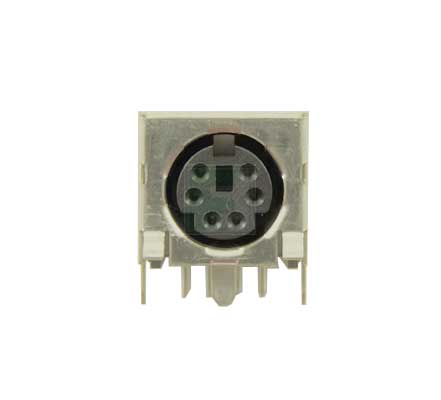

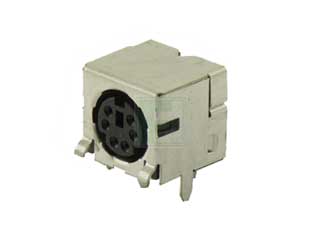

6 Position Right Angle Receptacle Shielded Miniature Circular DIN Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1110 per Tube | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5750071-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5750071-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/5750071-1-te-connectivity-3576337
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5750071-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/5750071-1-te-connectivity-3576337
TE Connectivity 5750071-1 - Technical Attributes
| Style/Orientation: | PCB Mount DIN Receptacle |
| No of Positions: | 6 |
| Mating Type: | Push Pull |
| Termination: | Female/Socket Solder |
| Material: | Metal |
Features & Applications
The 5750071-1 is a 6 position right angle receptacle shielded miniature circular DIN connector.
Shielded Miniature Circular DIN printed circuit board receptacles are ideal I/O connectors where board real estate is at a premium. All connectors are available in three through eight positions plus right-angle connectors are available in a nine position configuration. Stacked connectors are also available in six- and nine-position configurations.
Features:
- Product Type = Connector
- PCB Mounting Orientation = Right Angle
- Front Panel Grounding = With
- PCB Mount Retention = Without
- Gender = Receptacle
- Grounding Clips = Without
- Solder Tail Contact Plating = Tin
- Connector Configuration = Mini DIN
- Number of Positions = 6
- Shield Plating = Tin over Nickel
- Contact Plating, Mating Area, Material = Gold (30)
- Contact Base Material = Copper Alloy
- Underplate Material = Nickel
- Housing Material = Thermoplastic - GF
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Available Packaging
Package Qty:
1110 per Tube
