Manufacturer Part #
HDP24-24-47PE-L017

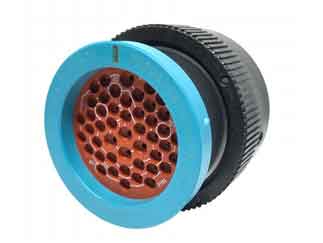

DEUTSCH HDP20 Series 47 Position Housing for Male Terminals Panel Mount
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:150 per Tray Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity HDP24-24-47PE-L017 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Description: DEUTSCH HDP SIZE 24 PLUG AND RECEPTACLE PRODUCT DRAWING CLARIFICATIONGeneral Description of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is making a minor drawing change to add traceability witness mark locations for internal purpose only for the product drawing(s) see attached SPCN document.Reason for Changes:Dear Customer, we hereby inform you of this drawing change. The change is necessary to improve product traceability for internal use. The change does not impact performance. IMPORTANT: The current and previous revisions of these parts can be used interchangeably in the field. Shipments of both configurations may be mixed.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HDP24-24-47PE-L017&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/hdp24-24-47pe-l017-te-connectivity-4082117
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=HDP24-24-47PE-L017&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-circular/hdp24-24-47pe-l017-te-connectivity-4082117
TE Connectivity HDP24-24-47PE-L017 - Technical Attributes
| Style/Orientation: | Panel Mount Receptacle |
| No of Positions: | 47 |
| Mating Type: | Bayonet |
| Termination: | Male/Pin Crimp |
| IP Rating: | IP67 |
| Material: | Thermoplastic |
| Voltage Rating: | 250V |
| Operating Temp Range: | -55°C to +125°C |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
150 per Tray
Mounting Method:
Panel Mount
