Référence fabricant
1658615-3

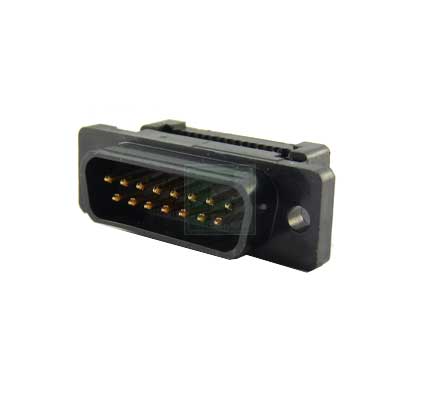

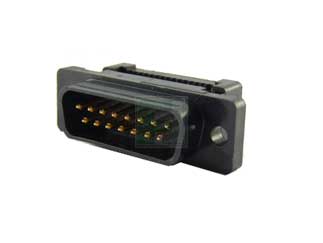

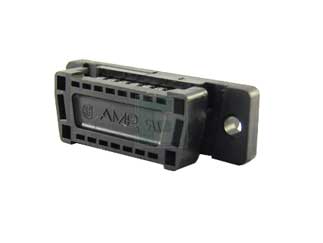

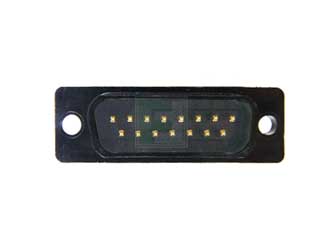

HDF-20 Series 15 Position Free Hanging Plug IDC Standard Cable Connector
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :400 par Tube Méthode de montage :Through Hole | ||||||||||
| Code de date: | |||||||||||
TE Connectivity 1658615-3 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1658615-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-d-subs/1658615-3-te-connectivity-2228427
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1658615-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/interconnect--connectors-d-subs/1658615-3-te-connectivity-2228427
TE Connectivity 1658615-3 - Caractéristiques techniques
| Style/Orientation: | Standard Free Hanging Plug |
| No of Positions: | 15 |
| No of Rows: | 2 |
| Termination: | IDC |
| Pitch: | 2.77 mm |
| Material: | Plastic |
| Shell Size: | 2 A |
| Gender: | Male |
| Color: | Black |
| Current Rating: | 1.25A |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -55°C to +105°C |
| Méthode de montage : | Through Hole |
Fonctionnalités et applications
Overview:
Tyco Electronics is the world’s leading connector manufacturer. Tyco Electronics Amplimite family of subminiature D connectors is the industry’s most extensive and versatile. These subminiature D connectors have become the most popular type of input/output (I/O) connectors in use today.
Established and proven, they are rugged, easily used and have been widely adopted in standards for serial communications, telecommunications and local area networks (LANS).
Available in panel mount or free hanging configuration, Amplimite family offers interconnect solutions for wire-to-board, panel-to-panel and wire-to-panel applications. A wide choice of shell sizes, number of positions and contact sizes is also available.
HDF-20 Low Profile All Plastic Connector Series are available in 9, 15, 25, 37 and 50 positions with shell size ranging from 1 through 5 in both plug and receptacle versions. The HDF-20 Low Profile comes with a patented insulation displacement contact which latches into the connector cover. Contacts accept 28 AWG solid and stranded, and 26 AWG solid and stranded round conductor flat ribbon cable. All assemblies are supplied with housing and cover pre-assembled.
1658615-3 is an Amplimite HDF-20 Series Panel Mount Plug with 9 (pin/male contact) positions housed in a size 2 all plastic with standard mounting holes.
The 1658615-3 comes with preloaded 20 DF posted contacts.
Mating options can also be found in the Related Products Tab.
Emballages disponibles
Qté d'emballage(s) :
400 par Tube
Méthode de montage :
Through Hole
