Manufacturer Part #
5-104652-1

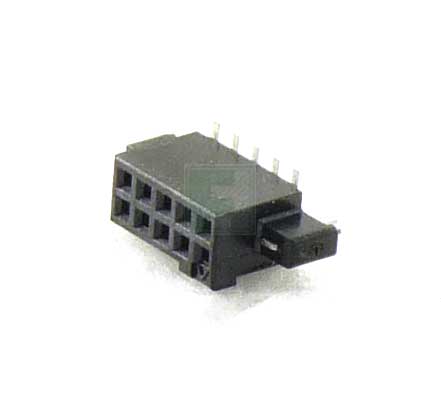

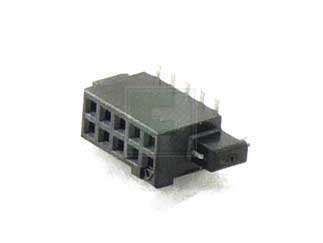

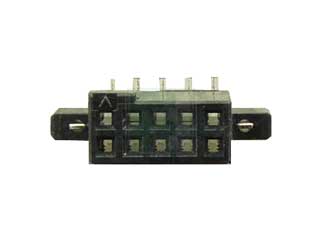

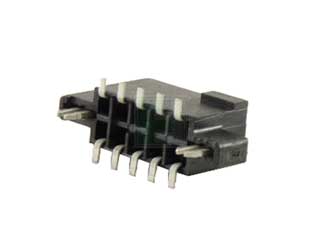

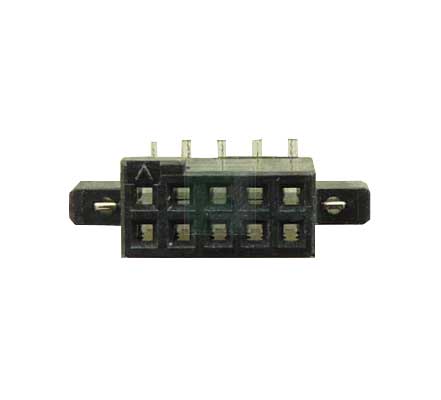

AMPMODU 10 Position Dual Row Straight SMT Strip Socket
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:49 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 5-104652-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104652-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/5-104652-1-te-connectivity-2326692
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-104652-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-d-subs/5-104652-1-te-connectivity-2326692
TE Connectivity 5-104652-1 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard Board Mount Receptacle |
| No of Positions: | 10 |
| No of Rows: | 2 |
| Termination: | PCB |
| Pitch: | 1.27 mm |
| Material: | Front Metal |
| Color: | Black |
| Current Rating: | 4A |
| Voltage Rating: | 30V |
| Contact Plating: | Gold |
| Insulation Resistance: | 5000MΩ |
| Operating Temperature: | -65°C to +105°C |
| Mounting Method: | Through Hole |
Features & Applications
The 5-104652-1 is a 10 position SMT dual row straight PCB strip socket. It is having an operating temperature range of (°C) = -65 – +105.
Features:
- Connector Type = Connector Assembly
- Mount Angle = Vertical
- PCB Mount Retention = With
- Mating Connector Lock = Without
- Hold-Down Post Material = Copper Alloy
- Hold-Down Post Plating = Tin (150) over Nickel (50)
- Insulation Resistance (M?) = 5,000
- Voltage (VAC) = 30
- Dielectric Withstanding Voltage (V) = 300
- Solder Tail Contact Plating = Tin (150) over Nickel (50)
- Number of Positions = 10
- PCB Mount Retention Type = Hold Down Post(s)
- Contact Base Material = Copper Alloy
- Contact Plating, Mating Area, Material = Gold (30)
- Underplate Material = Nickel
- Connector Style = Receptacle
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
33 Weeks
Quantity
Unit Price
1
$2.61
20
$2.55
50
$2.52
150
$2.48
400+
$2.41
Product Variant Information section
Available Packaging
Package Qty:
49 per Tube
Mounting Method:
Through Hole
