747872-4

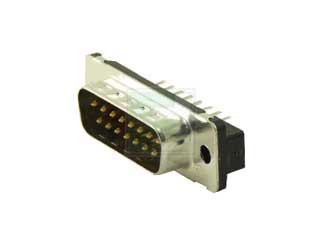

HD20 Series 15 Position Straight Plug Board Mount D-Sub Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2105
Product Specification Section
Technical Attributes
Attributes Table
Style/Orientation: Standard Board Mount Plug
No of Positions: 15
Termination: PCB
Material: Front Metal
Mounting Method: Through Hole
Features & Applications

The 747872-4 is a 15 Position, Straight Plug Board Mount D-Sub Connector.

Product Type Features:

  • Number of Positions = 15
  • PCB Mount Retention Type = Mounting Holes
  • Shell Plating = Tin
  • PCB Mounting Orientation = Vertical
  • Product Series = HD 20
  • Mating Connector Lock = Without
  • PCB Mount Retention = With
  • Shell Type = Front Metal Shell
  • PCB Mount Style = Through Hole
  • Color Code = None
  • Sealed = No
  • Profile = Standard
  • Post Size (mm [in]) = 0.66 [.026]
  • Mounting Hole Diameter (mm [in]) = 3.05 [.120]
  • Shell Material = Steel

Applications:

  • Industrial
  • Automotive
