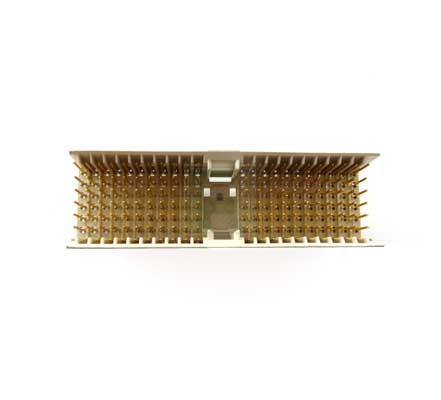

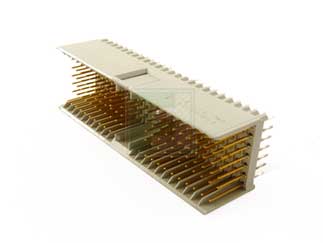

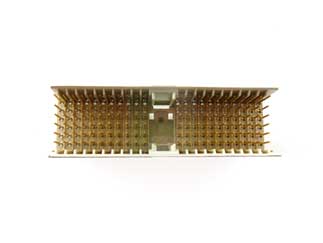

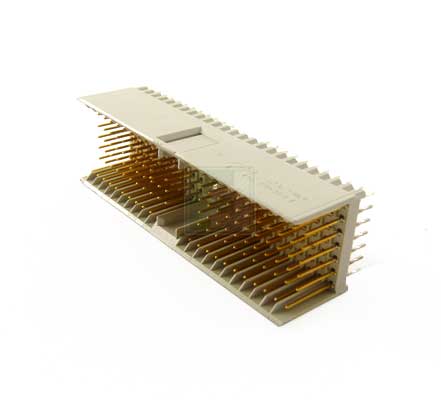

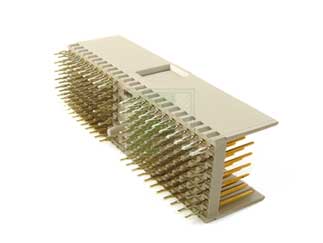

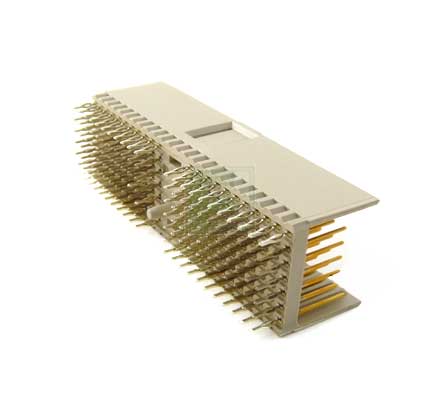

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

188834-1

Type A 154 Position 2 mm Pitch Through Hole Hard Metric Z-Pack Connector

188834-1 Datasheet 188834-1 Documentation 3D View Product Specifications Application Specifications
ECAD Model: Download the CAD models for this product. Learn more about SnapMagic.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Tube TubeSelected Variant Qty: 900+ / Unit Price: $7.60 / Stock: 0 Qty: 150+$7.60 Stock: 0 Package Qty: 150 per Tube Mounting Method: Through Hole
Date Code:

TE Connectivity 188834-1 - Technical Attributes

Type:	Board to Board
Style/Orientation:	Plug
No of Positions:	154
Pitch:	2 mm
Termination:	Press-fit
Mounting Method:	Through Hole

Features & Applications

The 188834-1 is a 154 position plug through hole press fit hard metric PCB mount connector. AMP Z-PACK 2 mm HM shielded connectors have been chosen for the interconnection of both CompactPCI and VME 64 Extensions because of high density, sequencing levels and profile compatibility with IEC Eurocard connectors.

Compact PCI 32 bit and 64 bit on 3U cards (P1-2/J1-2) and on 6U cards (P1-5/J1-5) use standard and special length connectors, with one of these also being used between the two Eurocard connectors J1/P1 and J2/P2 on VME 64 Extensions. Backplane and daughtercard connectors for single side or midplane applications are listed, the latter using corresponding one piece shrouds or separate spacers and shrouds for the backplane rear. Standard AMP HM cable connectors can be used with appropriate shrouds. Vertical receptacles allow the use of mezzanine cards to extend or increase card application flexibility.

Features:

Connector
Connector Assembly
Connector Style = Plug
Type = Type A
Interface Type = 2mm HM

Global Stock:

USA:

Factory Stock:

Factory Lead Time:

17 Weeks
