TE Connectivity | 5-104549-2

Manufacturer Part #

5-104549-2

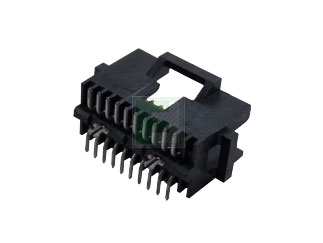

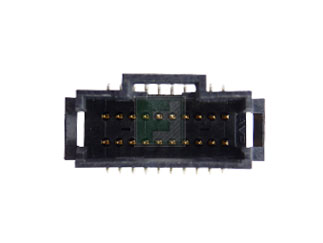

AMPMODU 20 Position Vertical Mount Dual Row Shrouded .050 x .100 Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2250
Product Specification Section
TE Connectivity 5-104549-2 - Technical Attributes
Attributes Table
No of Positions: 20
Pitch: 1.27 mm
Style/Orientation: Vertical Header/Plug
Termination: Solder
Operating Temp Range: -65°C to +105°C
Voltage Rating: 30V
Current Rating: 1A
Contact Plating: Gold
Material: Thermoplastic
No of Rows: 2
Gender: Male
Type: Shrouded Header
Mating Type: Detent Lock
Color: Black
Mounting Method: Surface Mount
Features & Applications

The 5-104549-2 is a AMPMODU 20 Position Vertical Mount Dual Row Shrouded .050 x .100 Header .

Product Specification:

  • Connector
  • Header
  • Plug Style
  • AMPMODU Product Line
  • Pin Contact type
  • Centreline is 1.27 mm [0.050 in]
  • Number of Positions are 20
  • Number of Rows are 2
  • Shrouded

View the 5-104549 series of Header

Pricing Section
Global Stock:
976
USA:
976
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
37 Weeks
Minimum Order:
1
Multiple Of:
1
Total
$2.74
USD
Quantity
Unit Price
1
$2.74
20
$2.68
50
$2.65
150
$2.61
400+
$2.54
