Manufacturer Part #
5177984-4

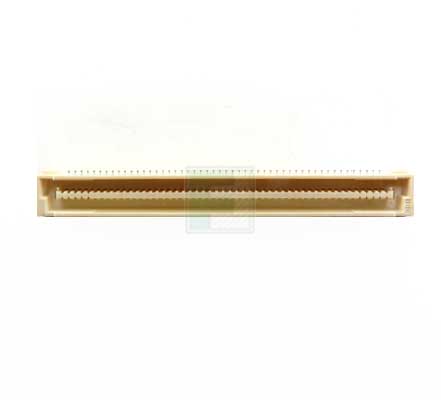

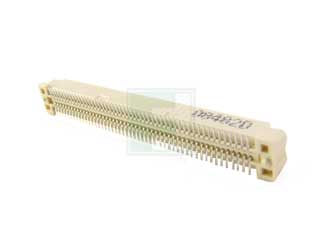

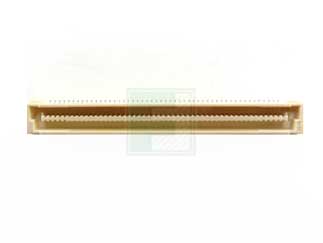

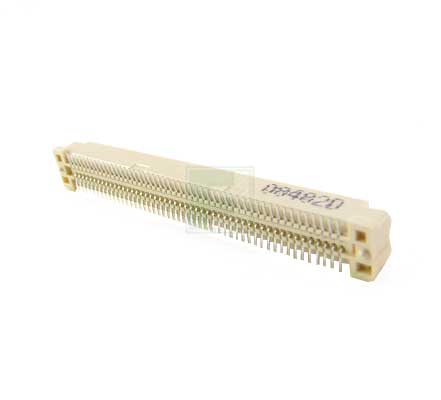

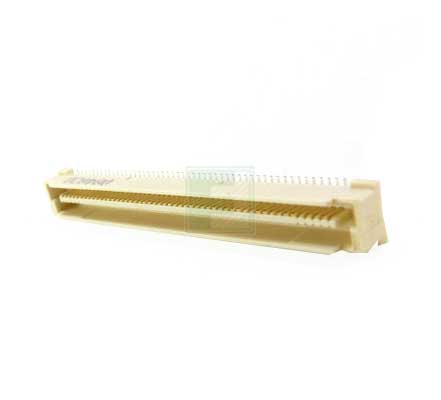

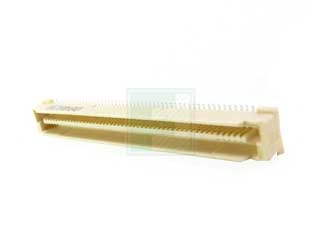

100 Position Surface Mount Dual Row Straight Board to Board Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:3000 per Tube Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 5177984-4 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE's operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5177984-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5177984-4-te-connectivity-7169410
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5177984-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5177984-4-te-connectivity-7169410
TE Connectivity 5177984-4 - Technical Attributes
| No of Positions: | 100 |
| Pitch: | 0.8 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Type: | Board to Board |
| Mounting Method: | Surface Mount |
Features & Applications
The 5177984-4 is a Fine Pitch 100 Position Surface Mount Dual Row Straight Board to Board Header .
Product Specification:
- Connector
- Plug Style
- Centreline is 0.80 mm [0.031 in]
- Number of Positions are 100
- PCB Mounting Orientation = Vertical
- Board-to-Board Stack Height = 5.00 mm, 9.00 mm, 13.00 mm, 17.00 mm
- Gold (8) Contact Plating, Mating Area, Material
- Liquid Crystal Polymer
- Natural Housing Color
View the 5177984 series of Header
Available Packaging
Package Qty:
3000 per Tube
Mounting Method:
Surface Mount
