Manufacturer Part #
9-103330-0

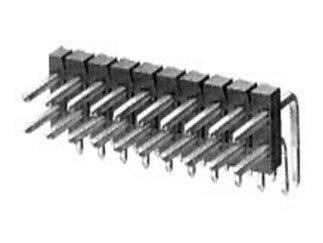

AMPMODU 80 Position Through-Hole Dual Row Right Angle .100 Inch Breakaway Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 9-103330-0 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=9-103330-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/9-103330-0-te-connectivity-8522161
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=9-103330-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/9-103330-0-te-connectivity-8522161
TE Connectivity 9-103330-0 - Technical Attributes
Attributes Table
| No of Positions: | 80 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Type: | Breakaway |
| Mounting Method: | Through Hole |
Features & Applications
The 9-103330-0 is a part of 9-103330 series AMPMODU, 80 position through hole dual row right angle header.
Features:
- Product Type Features:
- Product Type: Connector
- Mount Angle: Right Angle
- Post Size (mm [in]): 0.64 [.025]
- Mechanical Attachment:
- Mating Post Length (mm [in]): 5.84 [0.230]
- Termination Features:
- Termination Post Length (mm [in]): 3.05 [0.120]
- Solder Tail Contact Plating: Tin over Nickel
- Body Features:
- Header Type: Breakaway
- Number of Positions: 80
- Centerline (mm [in]): 2.54 [0.100]
- Row-to-Row Spacing (mm [in]): 2.54 [0.100]
- Number of Rows: 2
- Mount Type = Printed Circuit Board
- Contact Features:
- Contact Plating, Mating Area, Material: Tin
- Contact Shape: Square
- Contact Base Material: Phosphor Bronze
- Housing Features:
- Housing Materia: Thermoplastic - GF
- UL Flammability Rating: UL 94V-0
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
25 Weeks
Quantity
Unit Price
1,000+
$6.49
Product Variant Information section
Available Packaging
Package Qty:
1000 per Box
Mounting Method:
Through Hole
