TE Connectivity | 5050863-5

Manufacturer Part #

5050863-5

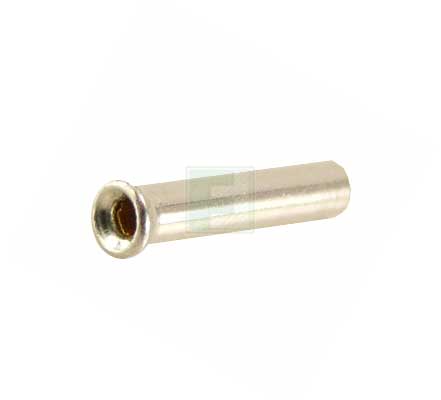

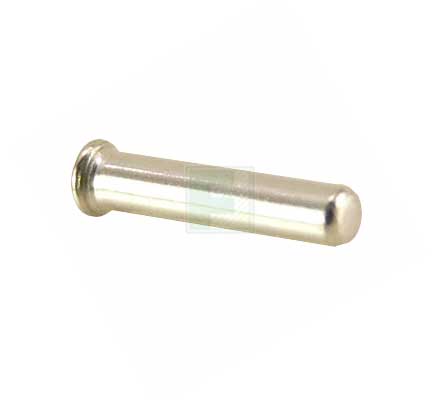

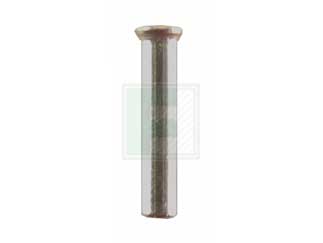

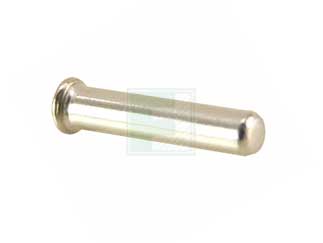

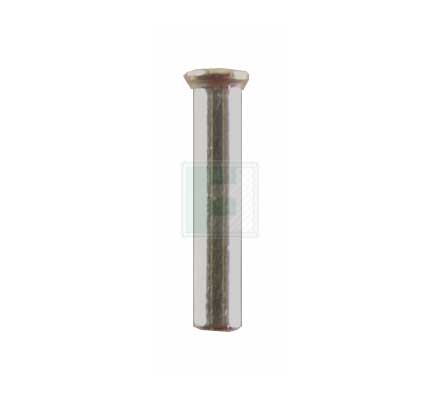

1 Position PC Pin Receptacles, Socket Press Fit Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 5050863-5 - Technical Attributes
Attributes Table
Style/Orientation: Receptacle
No of Positions: 1
Gender: Female
Termination: Press-fit
Features & Applications

The 5050863-5 is a part of 5050863 series 1 position PC pin receptacles.

Features:

  • Product Type Features:
    • Socket Length (mm [in]) = 6.60 [0.260]
    • Sleeve Style = Closed Bottom
    • Sealant = Without
    • Sleeve Material = Copper
    • Recommended Hole Size (mm [in]) = 1.32 [0.052]
  • Body Features:
    • Mating Pin Dia. Range (mm [in]) = 0.36 – 0.66 [0.014 – 0.026]
    • Sleeve Material Plating = Tin
    • Spring Material = Beryllium Copper
  • Contact Features:
    • Contact Spring Plating = Gold (30)
    • Contact Base Material = Beryllium Copper
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
10 Weeks
Minimum Order:
20000
Multiple Of:
20000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$8,500.00
USD
Quantity
Unit Price
20,000+
$0.425
