Manufacturer Part #

8730-0-19-01-23-27-10-0

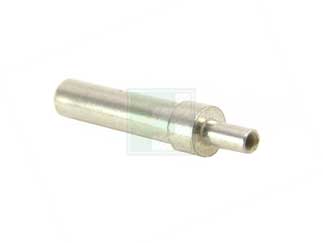

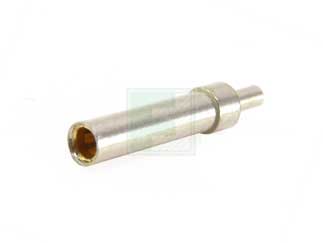

Wire Crimp and Termination Receptacle

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

The 8730-0-19-01-23-27-10-0 is a 8730 Series Wire Crimp and Termination Receptacle Accepts .045-.065 diameter leads.

Specifications:

  • Contact Used: 23, Low Force 6 Finger Contact
  • Current Rating = 11.2 Amps
  • BERYLLIUM COPPER ALLOY 172 (UNS C17200) perASTM B 194
  • Properties of BERYLLIUM COPPER:
  • Chemical composition: Cu 98.1%, Be 1.9%
  • Temper as stamped: TD01
  • Properties after heat treatment (TH01):
  • Hardness: 36-43 Rockwell C
  • Mechanical Life: 100 Cycles Min.
  • Density: .298 lbs/in3
  • Electrical Conductivity: 22% IACS*
  • Resistance: 10 miliohms Max
  • Operating Temperature: -55°C/+125°C
  • Melting point: 980°C/865°C (liquidus/solidus)

View the Available 8730 Series of Receptacles

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
1000
Multiple Of:
500
Total
$1,280.00
USD
Quantity
Web Price
500
$2.77
1,000
$1.28
1,500
$1.22
2,000+
$1.18
