Manufacturer Part #
2058703-2

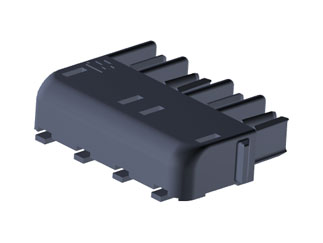

4 Position 4 mm Surface Mount Right Angle Hermaphroditic Blade/Receptacle
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:8000 per Reel |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 2058703-2 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2058703-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/2058703-2-te-connectivity-5920343
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2058703-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/2058703-2-te-connectivity-5920343
Features & Applications
The 2058703-2 is a Series of Hermaphroditic Blade and Receptacle board to board connectors provides power to the first LED printed circuit board in a string of rigid printed circuit board light strips. Temprature ranges form -40° to +105° C
Product Features:
- Board-to-Board
- Contact Current Rating, Max = 5 A
- SMT Compatible = Yes
- Mating Retention Type = Latching
- Operating Voltage (VAC) = 90
- Number of Rows = 1
- Header Mating Direction = Horizontal
- PCB Mount Retention Type = Solder Pads
- Tail Plating Material = Matte Tin-Lead over Nickel
- Housing Material = Liquid Crystal Polymer (LCP)
- UL Flammability Rating = UL 94V-0
View the Complete Series of Hermaphroditic Blade and Receptacle
Available Packaging
Package Qty:
8000 per Reel
