TE Connectivity | 1-1658526-9

Manufacturer Part #

1-1658526-9

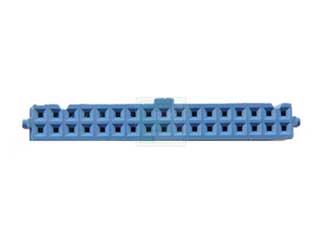

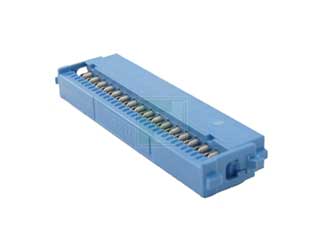

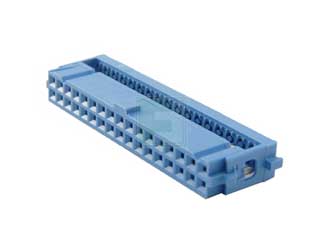

AMP LATCH 34 Position 2.54 mm Pitch Ribbon Cable Receptacle

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1-1658526-9 - Technical Attributes
Attributes Table
Type: Cable to Board
No of Positions: 34
Pitch: 2.54 mm
Style/Orientation: Free Hanging Socket/Receptacle
Termination: IDC
Mounting Method: Panel Mount
Features & Applications

The 1-1658526-9 is a Part of  Amp-Latch Series with 34 Position 2.54 mm Pitch Ribbon Cable Receptacle Connector.

Ribbon Cable Connectors are wire-to-board devices used to make the transition between cable and pc board circuitry.They find heavy use within equipment to connect one board to another or one subsystem to another. The connectors are also used in input/output applications, connecting different pieces of equipment.

Features:

  • Series: AMP-Latch
  • Contact Type: Female Socket
  • Number of Rows: 2
  • Termination to wire/cable: IDC
  • Wire Type: Ribbon cable
  • wire Gauge: 28-30 AWG
  • color: Blue
  • Contact Finish: Gold

View the AMP-Latch Series of Receptacle Connectors

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
13 Weeks
Minimum Order:
1120
Multiple Of:
1120
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$9,688.00
USD
Quantity
Unit Price
1,120+
$8.65
