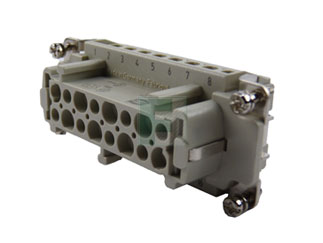

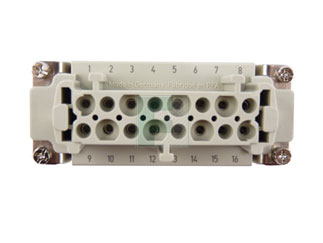

HAN E 16 Position Female Insert 600 V Screw Terminal Connector

ECAD Model:
Mfr. Name: HARTING
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
HARTING 09330162701 - Technical Attributes
Attributes Table
No of Positions: 16
Contact Termination: Screw Terminal
Style/Orientation: Free Hanging Receptacle
Material: Polycarbonate
Mating Type: Push - Pull
Features & Applications

The 09330162701 is a HAN-E 16 position female housing interconnect. It has a limiting temperature ranging from -40°C to +125°C

Specifications:

  • Size: 16 B
  • Gender: female
  • Termination method: Screw terminal
  • Wire gauge AWG, min.: 18 AWG
  • Wire gauge AWG, max.: 14 AWG
  • Tightening torque, max.: 0,5 Nm
  • Rated current, pollution degree 3: 16 A
  • Rated voltage, pollution degree 3: 500 V
  • Rated impulse voltage, pollution degree 3: 6 kV
  • Pollution degree 3: 3
  • Rated voltage acc. to UL: 600 V
  • Colour, insert: RAL 7032 (light grey)
  • Flammability insert acc. to UL 94: V 0
  • Number of contacts: 16
  • Wire gauge mm² min.: 0,75 mm2
  • Wire gauge, max.: 2,5 mm2
  • Material, insert: polycarbonate
  • Mechanical working life - mating cycles: >= 500
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
3 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$16.78
USD
Quantity
Unit Price
1
$16.78
4
$16.57
15
$16.37
40
$16.22
100+
$15.98
