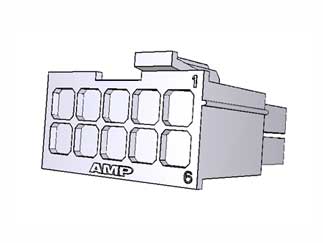

Mini-Universal MATE-N-LOK 10 Position Positive Lock Free Hanging Plug Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1200 per Bag | ||||||||||
| Date Code: | 2542 | ||||||||||
TE Connectivity 770580-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of Changes:As a valuable TE customer, please be aware of adding an additional resin (PA66/6) option for this product. Necessary qualification tests as per the Product specification were performed and passed. Product color may have slight color shade difference between current and new additional material, Before: PA66/6 After:PA66/6.Reason for Changes:We are standardizing our global resins and adding an additional resin option to prevent global inventory shortages and interruptions in supply. There is no impact to fit, function, or performance of the part.
Mini MNL Plug housings resin change backThe material change communicated earlier will not be implemented (Future PCN 36699). PCN E-13-016757 consists of Header assemblies and plug housings. Through PCN E-15-001261 we are cancelling the resin change of only plug housings. Reason For Change: Product Improvement
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=770580-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/770580-1-te-connectivity-5700943
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=770580-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/770580-1-te-connectivity-5700943
TE Connectivity 770580-1 - Technical Attributes
| No of Positions: | 10 |
| No of Rows: | 2 |
| Contact Termination: | Male/Pin Crimp |
| Pitch: | 4.14 mm |
| Style/Orientation: | Free Hanging Plug |
| Termination: | Crimp |
| Operating Temp Range: | -20°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9.5A |
| Contact Material: | Brass |
| Material: | Nylon |
| Gender: | Male |
| Type: | Plug |
| Mating Type: | Positive Lock |
| Color: | White |
Features & Applications
The 770580-1 is a Mini-Universal MATE-N-LOK 10 Position Positive Lock Free Hanging Plug Connector. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.
The electrical connector is an integral component in these applications. They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.
Product Type Features:
- Product Type = Connector
- Connector Type = Housing
- Connector Line = Mini-Universal MATE-N-LOK
- Mount = Free Hanging
- Color = White
- Mating Retention Type = Positive Lock
- Centerline (mm [in]) = 4.14 [0.163]
- Number of Positions = 10
- Mating Retention = With
- Contact Diameter (mm [in]) = 0.99 [0.039]
Applications:
- ATM Machines
- Inkjet
- MFP/LBP
- Networking (Communications)
- Power (Multi-User)
- Projector
- Scanner
Mating Products:
- 1-770743-0
- 1-770743-1
- 1-770858-0
- 1-770858-1
- 1-770971-0
Available Packaging
Package Qty:
1200 per Bag
