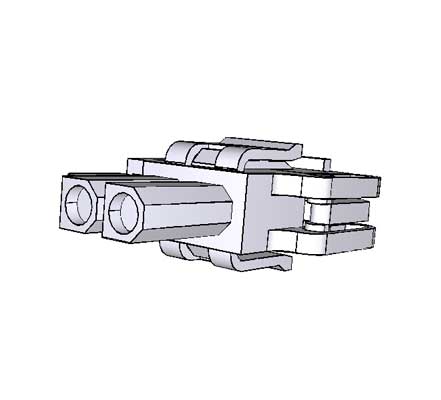

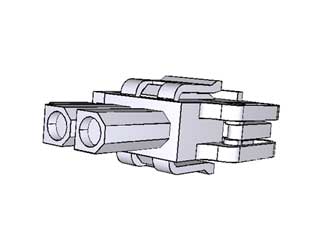

TE Connectivity | 794184-1

The 794120-1 is a Mini-Universal MATE-N-LOK II 2 Position Latch Lock Free Hanging Plug Connector. AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment.

The electrical connector is an integral component in these applications.They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.

Product Type Features:

• Product Type = Connector
• Connector Type = Housing
• Connector Line = Mini-Universal MATE-N-LOK 2
• Mount = Free Hanging
• Color = White
• Mating Retention Type = Latching
• Centerline (mm [in]) = 4.14 [0.163]
• Number of Positions = 2
• Mating Retention = With
• Contact Diameter (mm [in]) = 0.99 [0.039]

Applications:

• ATM Machines
• Inkjet
• MFP/LBP
• Networking (Communications)
• Power (Multi-User)
• Projector
• Scanner

Mating Products:

• 794185-1
• 770166-1
• 770166-2
• 770872-1
• 770872-2
