TE Connectivity | 320576

Manufacturer Part #

320576

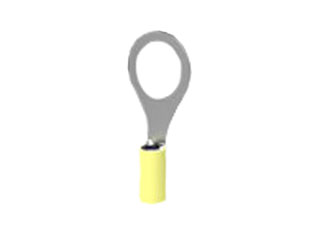

PIDG™ Series Straight 16-14 AWG Closed Barrel Circular Ring Terminal

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2402
Product Specification Section
TE Connectivity 320576 - Technical Attributes
Attributes Table
Size: Stud 5/16"
Style: Insulation Support
Type: Ring
Wire Gauge: AWG 12-10
Features & Applications

The PIDG™ Series is a Straight 12-10 AWG Insulated Closed Barrel Circular Ring Terminal

Features:

  • Terminal Shape = Ring Tongue
  • Receptacle Style = Straight
  • Body Style = PIDG
  • Barrel Type = Closed Barrel
  • Wire/Cable Type = Regular Wire
  • Insulation = Yes
  • Insulation Support = Insulation Support
  • Insulation Diameter (mm [in]) = 5.84 [.230] Max.
  • Stud Diameter (mm [in]) = 7.92 [0.312]
  • Stud Size = 5/16 [M8]
  • Shape = RING-041
  • Heavy Duty = No
  • Material = Copper
  • Finish = Tin
  • Color = Yellow
  • Insulation Material = Nylon





Pricing Section
Global Stock:
10,000
USA:
10,000
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
500
Multiple Of:
500
Total
$160.00
USD
Quantity
Unit Price
500
$0.32
1,000
$0.315
2,500
$0.31
5,000+
$0.305
