Manufacturer Part #
SFH31-NPPB-D05-SP-BK

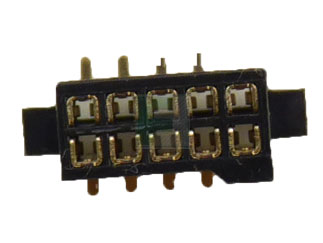

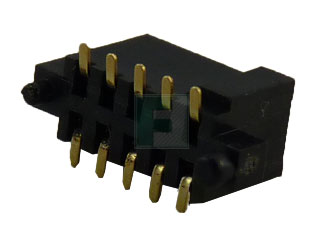

10 Position Total Dual Row 1.27 mm Pitch Surface Mount Posts Female Box Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tube Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Sullins SFH31-NPPB-D05-SP-BK - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SFH31-NPPB-D05-SP-BK&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--dual-in-line-package-sockets/sfh31-nppb-d05-sp-bk-sullins-1788470
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SFH31-NPPB-D05-SP-BK&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--dual-in-line-package-sockets/sfh31-nppb-d05-sp-bk-sullins-1788470
Sullins SFH31-NPPB-D05-SP-BK - Technical Attributes
Attributes Table
| Mounting Method: | Surface Mount |
Features & Applications
The SFH31-NPPB-D05-SP-BK is a Dual row 10 position 1.27 mm pitch Straight Right Angle,Female Shrouded Box Headers Gold Flash With Polarizing Key. It is having operating temperature range of -40° C to + 85° C
Product Features:
- Nylon 6T/ Phosphor Bronze
- Gold Flash Overall
- Dual Readout
- 20 total contacts
- Surface Mount with Peg
- Black
Specifications:
- Operating Temperature: -40°C to 85°C
- Processing Temp: 230°C for 60 Seconds Max (260"C, 10 sec.)
- UL Flammability Rating: 94V-0
- Contact Resistance: 20 mO maximum
- Current Rating: 1 AMP per contact
- Voltage Drop: AC 500 V
- Insulation Resistance: l000 MO minimum
- Dielectric Withstanding: 500 VAC
- For PCB Connector
Applications:
- Communications Equipment
- Medical Equipment
- Instrumentation
- Power Converters and Power Supplies
- Aerospace
- Automotive
View the SFH31 Series of Headers
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
1
$0.545
50
$0.535
200
$0.515
500
$0.505
2,000+
$0.485
Product Variant Information section
Available Packaging
Package Qty:
1 per Tube
Mounting Method:
Surface Mount
