TE Connectivity | 1658686-2

Manufacturer Part #

1658686-2

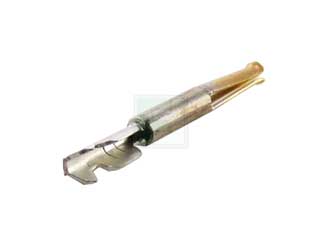

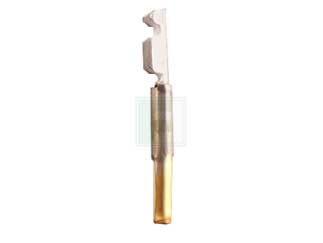

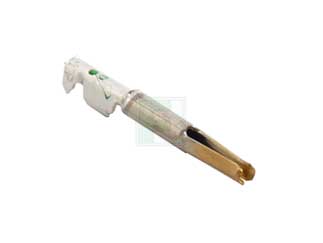

HDP22 Series 22-28 AWG 30 Gold Crimp Socket D-Sub Contact

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1658686-2 - Technical Attributes
Attributes Table
Mounting Method: Through Hole
Features & Applications

The 1658686-2 is a Part of HDP-22 Series, 22-28 AWG Gold Flash Crimp Socket D-Sub Contact

Product Features:

  • Product Type = Contact
  • Product Series = HDP-22 (Crimp Snap)
  • Termination Method to Wire/Cable = Crimp
  • Wire Insulation Diameter (mm [in]) = 0.76 – 1.02 [0.030 – 0.040]
  • Insulation Support = Yes
  • Grade = Standard
  • Wire Range (mm² [AWG]) = 0.08 - 0.40 [28-22]
  • Contact Type = Socket
  • Contact Base Material = Phosphor Bronze
  • Contact Plating, Mating Area, Material = Gold (30)
  • Contact Size = 22



Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
8 Weeks
Minimum Order:
40000
Multiple Of:
40000
Total
$3,808.00
USD
Quantity
Unit Price
1
$0.11
250
$0.107
1,000
$0.104
2,500
$0.101
10,000+
$0.0952
