Manufacturer Part #

172-E09-213R011

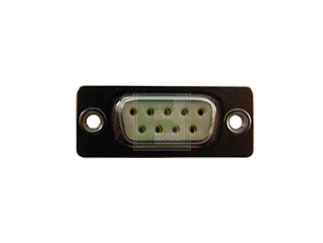

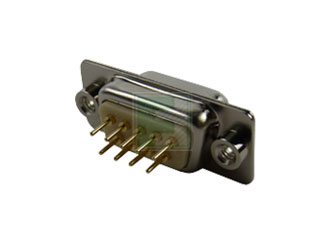

172 Series 9 Position Dual Row Through Hole Female Dip Solder D-Sub Connector

ECAD Model:
Mfr. Name: NorComp
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
No of Positions: 9
Style/Orientation: Receptacle
Termination: Solder
Type: Header
Mounting Method: Through Hole
Features & Applications

The 172-E09-103R001 is a 9 Position Female Economy Vertical Through Hole Header.

Features:

  • Available in 5 industry sizes/positions (9, 15, 25, 37, 50)
  • Non-removable contacts
  • Nickel shells available only
  • Male shells have indents to provide grounding and additional retention
  • Screw machine contacts offer high reliability
  • Optional mounting hardware available

Materials:

  • Shell: Steel, Nickel plated
  • Insulator: Glass-filled thermoplastic. U.L. rated 94V-O (260°C process temp)
  • Machined contacts:
    • Male pins - Brass
    • Female pins - Brass
  • Plating: Gold flash on entire contact (contact factory for other plating options)

View the Available 172-E Series of Connectors

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
160
Multiple Of:
80
Total
$459.20
USD
Quantity
Web Price
80
$3.46
160
$2.87
240
$2.82
400+
$2.77
