Manufacturer Part #

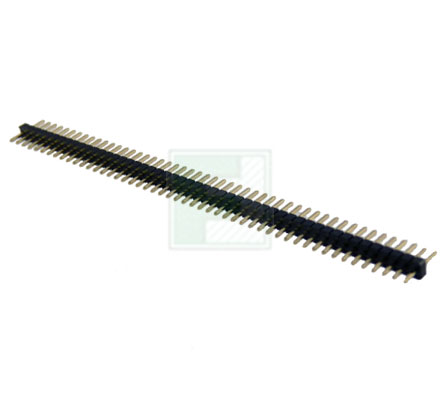

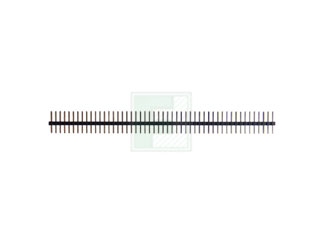

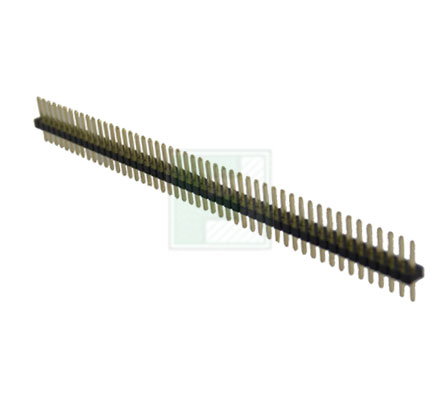

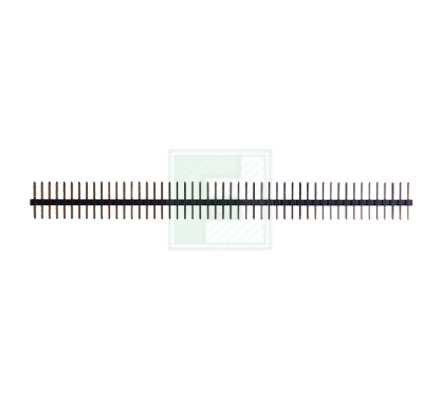

GRPB501VWVN-RC
GRPB Series Single Row 50 Position 1.27 mm Pitch Through Hole Straight Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Sullins | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Sullins GRPB501VWVN-RC - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=GRPB501VWVN-RC&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/grpb501vwvn-rc-sullins-8666984
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=GRPB501VWVN-RC&field4=Sullins&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--header-plug-board-mount/grpb501vwvn-rc-sullins-8666984
Sullins GRPB501VWVN-RC - Technical Attributes
Attributes Table
| No of Positions: | 50 |
| Pitch: | 1.27 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Current Rating: | 1A |
| Contact Plating: | Gold Flash |
| Material: | Nylon |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Insulation Resistance: | 5000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The GRPB501VWVN-RC is a part of GRPB series 50 pin header. It has an operating temperature ranging from -40°C to + 105°C.
Features:
- Insulator Material: Nylon 9T
- Contact Material: Brass
- Plating: Overall Gold Flash
- 1 amp current rating per contact
- UL Flammability Rating: 94V-O
- .050" [1.27mm] Contact Centers
- Single Row
- RoHS COMPLIANT
- 50 total contacts
View the complete GRPB series PCB Interconnect
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
1
$2.04
25
$2.00
75
$1.97
200
$1.95
500+
$1.90
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
Mounting Method:
Through Hole
