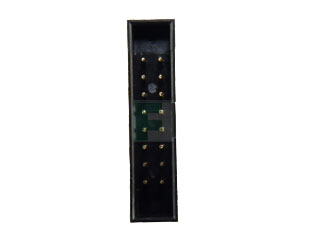

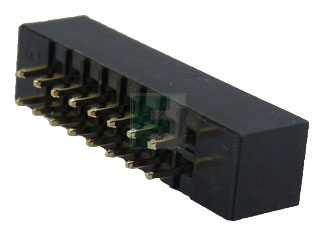

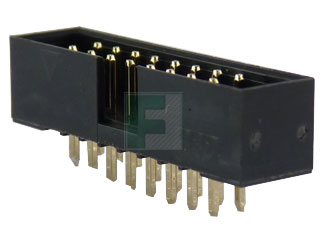

Sullins | SBH21-NBPN-D08-ST-BK

Manufacturer Part #

SBH21-NBPN-D08-ST-BK

16 Position Total Dual Row 2 mm Pitch Straight Male Shrouded Box Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SBH21-NBPN-D08-ST-BK - Technical Attributes
Attributes Table
No of Positions: 16
Pitch: 2 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Box Header
Features & Applications

The SBH21-NBPN-D08-ST-BK is a 16 Position Dual row 2mm Pitch Straight Black Box Header having operating temperature - 400 °C to + 850 °C

Specifications:

  • Centered Polarizing Notch
  • Operating Temperature: - 400 °C to + 850 °CProcessing Temperature: 2300 C for 60 seconds Max.
  • (2600 C, 10 seconds)
  • UL Flammability Rating: 94V-0
  • Voltage Rating: 20m OHMs Max.
  • Current Rating: 2 AMP per contact
  • Voltage Drop: AC 500 V.
  • Insulation Resistance: 1000 Mega OHMS

Applications:

  • Communications Equipment
  • Medical Equipment
  • Instrumentation
  • Power Converters and Power Supplies
  • Aerospace
  • Automotive

View the SBH-21 series of Board Mount Header

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
3,199
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$555.00
USD
Quantity
Unit Price
1,000
$0.555
2,000
$0.55
3,000+
$0.54
