Name: Adam Tech PH1-06-UA
Brand: Adam Tech
SKU: 6172302
Price: 0.0396 USD
Availability: InStock

text.skipToContent text.skipToNavigation

- Region & Currency
- Americas
  - Other Currencies
  - CAD ($)
  - USD ($)
- Asia Pacific
  - Other Currencies
  - AUD ($)
  - JPY (¥)
  - KRW (₩)
  - MYR (RM)
  - NZD ($)
  - SGD ($)
  - USD ($)
- Europe, Middle East, Africa
  - Other Currencies
  - CHF (CHF)
  - CZK (Kč)
  - DKK (kr)
  - USD ($)
You are changing the region you shop from. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.

You are changing currency. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.
1 (800) 675-1619

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

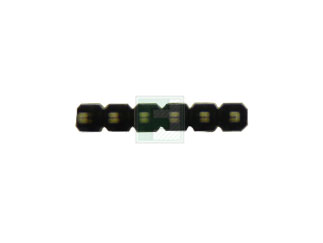

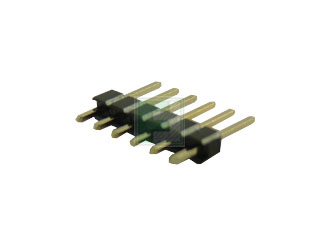

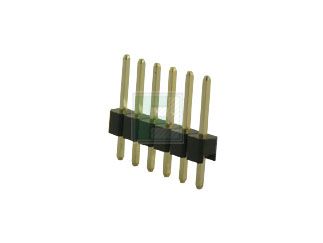

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PH1-06-UA

Connector Header Through Hole 6 position 0.100 (2.54mm)

PH1-06-UA Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Adam Tech
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Bulk Mounting Method: Through Hole
Date Code:	2526

Adam Tech PH1-06-UA - Technical Attributes

Mounting Method:

Through Hole

Features & Applications

The PH Series from Adam Tech is a family of .100" centerline Pin Headers. This series offers a full range of headers in a variety of configurations. Adam Tech offers a choice of single, dual, and three rows, either Straight or Right Angle in thru hole or Surface mount mountings.The posts have a close tolerance of 0.025" sq which are smoothly finished and taper tipped to eliminate insertion damage to the PCB or mating connector. Adam Tech Pin Headers can be easily cut down into exact sizes as required.

PH1-06-UA is a 6 position Single Row Straight form, .100" Header. This device is gold flash plated, has a Mating length of .235", and has a Solder tail length of .120".
