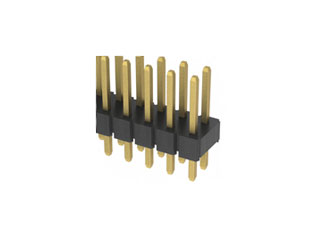

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PH2-20-UA

Connector Header Through Hole 20 position 0.100 (2.54mm)

PH2-20-UA Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Adam Tech
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 500 per Bag Mounting Method: Through Hole
Date Code:	2422

Adam Tech PH2-20-UA - Technical Attributes

Mounting Method:

Through Hole

Features & Applications

The PH Series from Adam Tech is a family of .100" centerline Pin Headers. This series offers a full range of headers in a variety of configurations. Adam Tech offers a choice of single, dual, and three rows, either Straight or Right Angle in thru hole or Surface mount mountings.The posts have a close tolerance of 0.025" sq which are smoothly finished and taper tipped to eliminate insertion damage to the PCB or mating connector. Adam Tech Pin Headers can be easily cut down into exact sizes as required.

PH2-20-UA is a 20 position Dual Row Straight form, .100" Header. This device is gold flash plated, has a mating length of .235", and has a Solder tail length of .120".
